DISPLAY PORT SMT WITH CLIPS,SHELL LEG 1.0MM

"Enhance Efficiency and Organization with Display Port SMT and Shell Leg 1.0mm Clips"

$500

≥1000
Piece/Pieces

Payment Type:

L/C,Paypal,T/T

Incoterm:

FOB,CIF,EXW

1000

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Air

Port:

shenzhen

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Company Overview
Company Photos
Production Certification

< >

Overview

Product Attributes

Model No.: DP-FXX06

Brand: antenk

Place Of Origin: China

Gender: Female

Contacts: 20p

Supply Ability & Additional Information

Packaging: reel & tape,bag

Productivity: 100000/month

Transportation: Ocean,Air

Place of Origin: china

Supply Ability: 100000/month

Certificate: iso9001

HS Code: 8536909000

Port: shenzhen

Payment Type: L/C,Paypal,T/T

Incoterm: FOB,CIF,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: reel & tape,bag

Introducing our high-quality Display Port SMT with Clips, Shell Leg 1.0mm, designed to enhance your display connectivity experience. This product is meticulously crafted to ensure seamless and reliable connections between your devices. The SMT technology ensures a compact and durable design, perfect for any professional setting. With the included clips, you can securely attach the display port to your device, preventing accidental disconnections. The 1.0mm shell leg guarantees optimal signal transmission and reduces interference, delivering crystal-clear visuals and audio. Upgrade your display setup with our Display Port SMT with Clips, Shell Leg 1.0mm, and enjoy a seamless and immersive multimedia experience.

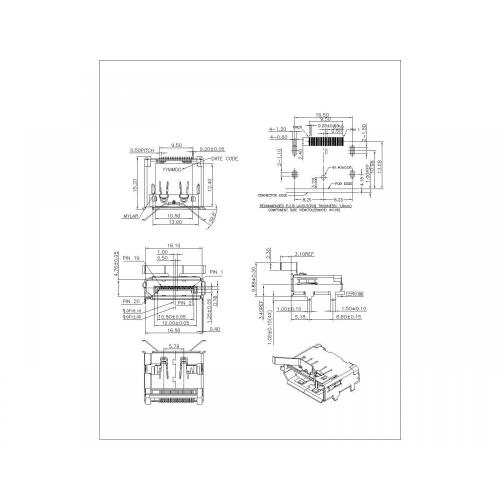

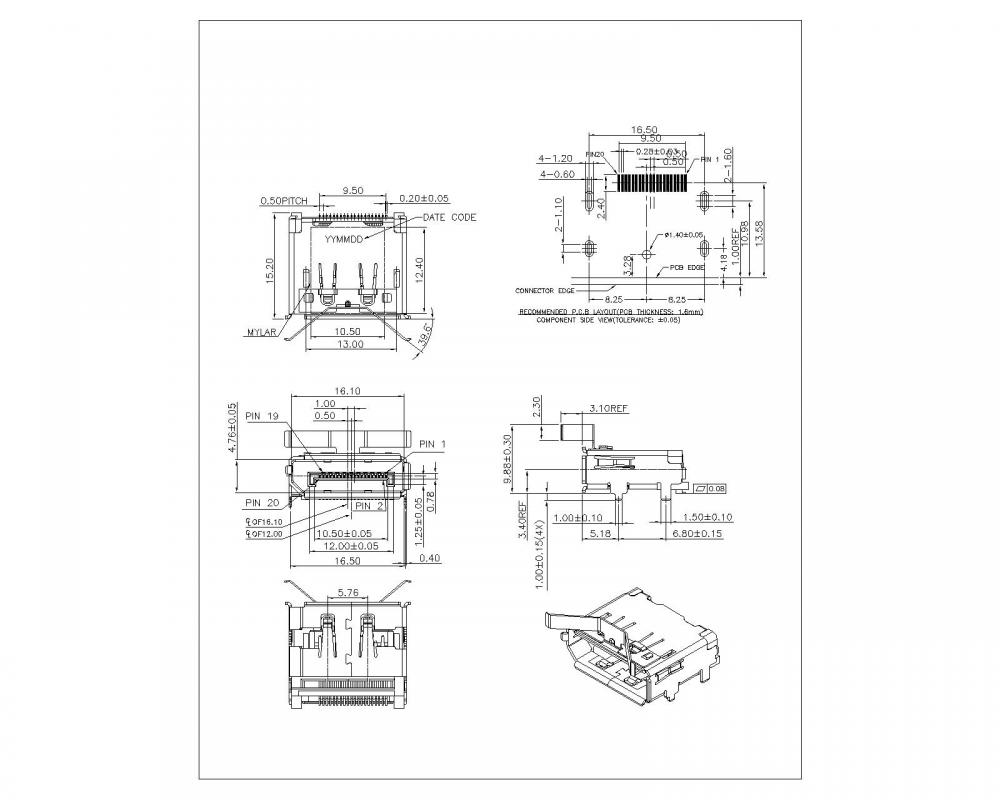

Display Port SMT WITH Clips,SHELL LEG 1.0MM

NOTE:
1.MATERIAL :
1.1 HOUSING: LCP. UL94V-0
COLOR: BLACK.
1.2 CONTACT: C2680 T=O 20mm.
1.3 SHIELD: C2680 T=0.40mm.
1.4 COVER: LCP UL94V-0
2.FINISH:
2.1 CONTACT: COLD(1U") PLATING IN CONTACT AREA.
80u"MIN Tin PLATED IN SOLDER AREA,
50u" MIN. NICKEL UNDERPLATED OVERALL
2.2 SHIELD: 50u" MIN. NICKEL UNDERPLATED OVERALL.
3.MECHANICAL CHARACTERISTICS
5.1 RATING CURRENT: 0.5A
3.2 RATING VOLTAGE: 40V
3.3 CONTACT RESISTANCE: 40 m0 MAX
3.4 INSULATION RESISTANCE:
o UNMATED: 100MO MIN AT 500 VDC
b. MATED:
10M OHMS MIN AT 150 VDC
3.5 DIELECTRIC WITHSTANDING VOLTAGE: 500V AC/ 1MINUTE
3.6 DURABILTY: 10000 CYCLES.
3.7 MATING FORCE: 4.5KGF MAX.
UNMATING FORCE: 1~4 KGF.
3.5 OPERATING TEMPERATURE: -20°C-+85°C
3.9 STORAGE TEMPERATURE: - 200°C-+65°C
4. NOTES:
4.1 ALL COMPONENTS ARE RoHS COMPLIANT
4.2 RESISTANCE TO SOLDERING HEAT: 265C FOR 10 SECONDS.

Product Categories : Display Port And Mini Display Port
