Solder Cup Coaxial 1W1 D-SUB Connector

"High-Quality Solder Cup Coaxial 1W1 D-SUB Connectors: Perfect Solution for Reliable Signal Transmission"

$500

≥1000
Piece/Pieces

Payment Type:

T/T,Paypal

Incoterm:

FOB,CFR,CIF,EXW

1000

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Air,Express

Port:

Shenzhen

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: PDC1W1-FXXX

Brand: ANTENK

Place Of Origin: China

Interface Type: D-Sub(Vga)

Housing: Plastic

Pin: Brass

Poles: 2-8

Application: Other

Certification: Ce

Gender: Female

Material: Brass

Support Card Number: Other

Operating Frequency: Low Frequency

Classification: Wired Broadband Connection

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packing

Productivity: 2000K/month

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 2000K/month

Certificate: ISO9001

HS Code: 8536909000

Port: Shenzhen

Payment Type: T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: bag packing,Tube packing, reel packing

The Solder Cup Coaxial 1W1 D-SUB Connector is a high-quality and reliable solution for professionals in need of a secure and efficient coaxial connection. With its solder cup termination design, this connector ensures a strong and durable connection that can withstand demanding applications. It is designed to accommodate coaxial cables, making it perfect for various industries such as telecommunications, aerospace, and industrial automation. The connector is built to handle up to 1W1 contact configuration, providing excellent signal transmission and minimizing signal loss. With its compact size and easy installation, this Solder Cup Coaxial D-SUB Connector is a must-have for professionals seeking a dependable coaxial connection solution.

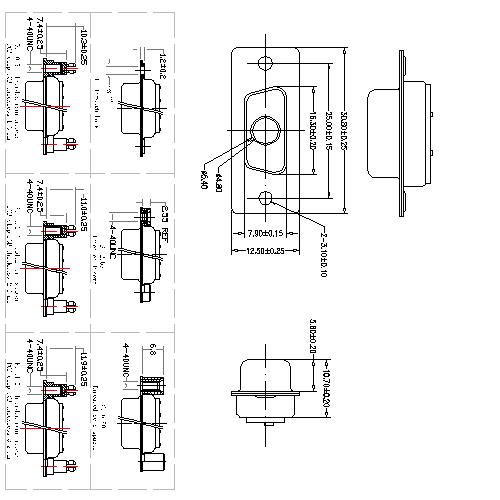

Solder Cup Coaxial 1W1 D-SUB Connector

Specifications:

Tech Specs
Material
Shell	Steel with Tin plating (Optional Nickel plating)
Insulator	Polyester PBT 30% GF, UL 94V-0,Black
Contacts	Copper alloy, Gold plated over Nickel
	Selective plating Matte Tin on terminal on coaxial contact body
	Signal contacts have full gold plating
Electrical Characteristics
Working Voltage	125V
Test Voltage	1000V for 1min (Dielectric withstanding voltage)
Signal Contact Current Rating
Coaxial Contact Impedance	50Ω and 75Ω
Contact Resistance	10mΩ max. (25mΩ max for R/A)
Insulation Resistance	5GΩ min
Mechanical Characteristics
Temperature rating	-55℃ to +125℃

Quality Class	Quality Class 1 (30u" Gold plated)
	Quality Class 3 (8u" Gold plated)
	Selective plating Matte Tin on terminal side for coaxial contact body
	Signal contacts have full gold plating
	More plating alternatives, contact Antenk Service
