Solder Cup 2W2 Male D-Sub Connector

"Request for Approval: Solder Cup 2W2 Male D-Sub Connector Purchase"

$500

≥1000
Piece/Pieces

Payment Type:

T/T,Paypal

Incoterm:

FOB,CFR,CIF,EXW

1000

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Air,Express

Port:

Shenzhen

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: PDC2W2-MXXX

Brand: ANTENK

Place Of Origin: China

Interface Type: D-Sub(Vga)

Housing: Plastic

Pin: Brass

Poles: 2-8

Application: Other

Certification: Ce

Gender: Female

Material: Brass

Support Card Number: Other

Operating Frequency: Low Frequency

Classification: Wired Broadband Connection

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packing

Productivity: 2000K/month

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 2000K/month

Certificate: ISO9001

HS Code: 8536909000

Port: Shenzhen

Payment Type: T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: bag packing,Tube packing, reel packing

Introducing the high-quality Solder Cup 2W2 Male D-Sub Connector, designed specifically for professionals in need of reliable and efficient connectivity solutions. This connector boasts exceptional durability and precision, ensuring a secure and long-lasting connection for your critical applications. With its solder cup termination, it offers easy and convenient installation, saving you valuable time and effort. The 2W2 configuration guarantees compatibility with a wide range of devices and equipment, making it an ideal choice for industrial, telecommunications, and aerospace sectors. Trust in the Solder Cup 2W2 Male D-Sub Connector to deliver unparalleled performance and seamless connectivity in your professional endeavors.

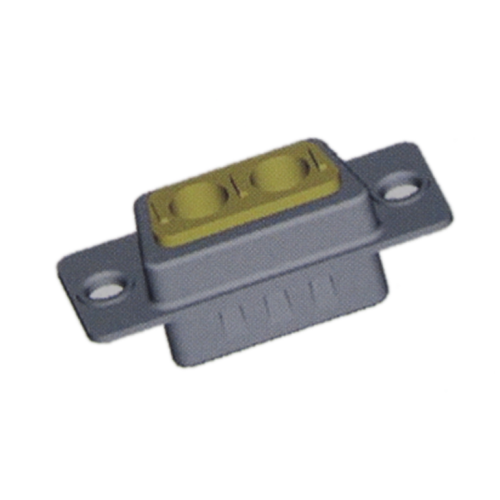

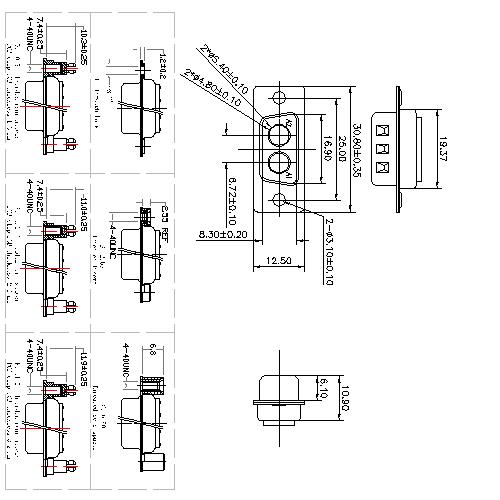

Solder Cup 2W2 Male D-Sub Connector

Specifications:

Tech Specs
Material
Shell	Steel with Tin plating (Optional Nickel plating)
Insulator	Polyester PBT 30% GF, UL 94V-0,Black
Contacts	Copper alloy, Gold plated over Nickel
	Selective plating Matte Tin on terminal on coaxial contact body
	Signal contacts have full gold plating
Electrical Characteristics
Working Voltage	125V
Test Voltage	1000V for 1min (Dielectric withstanding voltage)
Signal Contact Current Rating
Coaxial Contact Impedance	50Ω and 75Ω
Contact Resistance	10mΩ max. (25mΩ max for R/A)
Insulation Resistance	5GΩ min
Mechanical Characteristics
Temperature rating	-55℃ to +125℃

Quality Class	Quality Class 1 (30u" Gold plated)
	Quality Class 3 (8u" Gold plated)
	Selective plating Matte Tin on terminal side for coaxial contact body
	Signal contacts have full gold plating
	More plating alternatives, contact Antenk Service
