3 0mm Battery Clip Connector

3.0mm Pitch Battery Clip Contact Connector

• Brand: Antenk
• Packaging: bag packing,Tube packing, reel...
• Supply Ability: 2000K/Month
• Min. Order: 1000 Piece/Pieces

3.0mm Pitch Battery Clip Contact Connector Specifications: 1.MATERIALS: 1.1 PIN:Copper alloy 1.2 Finish:Contact:gold flash all over 50-100 micro inch (1.27-2.54 micron)nickel under plated all over 1.3 Soler tab:50-100(1.27-2.54 micron)micro inch tin 10-100 micro inch(1.27-2.54 micron)nick under plated 2.Electronical...

Contact Now

3.0mm Pitch Battery Connector 3 Circuit

• Brand: Antenk
• Packaging: bag packing,Tube packing, reel...
• Supply Ability: 2000K/Month
• Min. Order: 1000 Piece/Pieces

3.0mm Pitch Battery Connector 3 Circuit Specifications: 1.Material and Plating: 1.1 Housing:LCP 1.2 Terminal:C5191R-EH 1.3 Nail:C2680R-EH 1.4 Contact:1u" min gold plating on contact area, 1u" min gold plating on soldertails,50u" min nickel underplating over all 1.5 NAIL:50u" min nickel underplating,100-200u" tin...

Contact Now

3.0mm Pitch Battery Connector T/H Type

• Brand: Antenk
• Packaging: bag packing,Tube packing, reel...
• Supply Ability: 2000K/Month
• Min. Order: 1000 Piece/Pieces

3.0mm Pitch Battery Connector T/H Type Specifications Materiel : Pin : copper alloy 0.25mm thickness Hold down : copper alloy 0.25mm thickness Insulator : High Temperature thermoplastics, UL94V-0, black. Finish :50 microinch (1.27 micron) nickel underplated all over.15 microinch (0.38 micron) gold plated at mating...

Contact Now

3Pin PCB Mount Battery Connector Clip

• Brand: Antenk
• Packaging: bag packing,Tube packing, reel...
• Supply Ability: 2000K/Month
• Min. Order: 1000 Piece/Pieces

3Pin PCB Mount Battery Connector Clip Specifications: Housing:G.F ,High temp thermoplastic black Contact:0.20 REF Phosphor bronze 2.Plating:nickel 50 micro min undercoat over all gold flash 4 micro inch min over palladium nickel 40 micro inch min tin in solder tall area 3.parts to be packaged in pvc tubes

Contact Now

3 Circuit Battery Connector Clip 1.6 Centers

• Brand: Antenk
• Packaging: bag packing,Tube packing, reel...
• Supply Ability: 2000K/Month
• Min. Order: 1000 Piece/Pieces

3 Circuit Battery Connector Clip 1.6 Centers Specifications: RATING CURRENT:2.0 A RATING VOLTAGE :250 V AC CONTACT RESISTANCE:30mΩ INSULATION RESISTANCE:1000mΩ DIELECTRIC WITHSTANDING VOLTAGE: 1000V AC for 1 minute MECHANICAL PERFORMANCE: DURABILY:5000 times NORMAL FORCE AT MATING POSITION:80g min OPERATION...

Contact Now

2.5mm Pitch 3P Battery Connector Clip

• Brand: Antenk
• Packaging: bag packing,Tube packing, reel...
• Supply Ability: 2000K/Month
• Min. Order: 1000 Piece/Pieces

2.5mm Pitch 3P Battery Connector Clip Specifications: NOTES 1. MATERIAL: A. PIN:BERYLLIUM COPPER B.INSULATOR: 30% GLASS-FILLED THERMOPLASTIC LCP OR EQUIVALENT UL94V-O,BLACK. 2. FINISH: CONTACT:GOLD FLASH(1°MIN.)ALL OVER,50-100 MICROINCH (1.27-2.54 MICRON) NICKEL UNDERPLATED ALL OVER SOLER TAB:50-100(1.27-2.54 MICRON)...

Contact Now

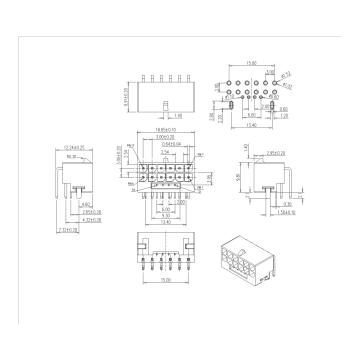

Molex 3.0mm 12+4P Wafer Connector

• Brand: Antenki
• Packaging: tray packing
• Supply Ability: 100000/month
• Min. Order: 1 Piece/Pieces

1.product introduction A Wire To Board Connectors is a device that connects a circuit board to a wire.It usually consists of two parts: one is a metal pin inserted into the hole of the board, and the other is a connector holding the wire.The Wire To Board Connectors has a color recognition function, so that the...

Contact Now

Molex 3.0mm PCI-E 12+4P 180° Wafer Connector Series

• Brand: Antenk
• Packaging: bag packing
• Supply Ability: 100000/month
• Min. Order: 1000 Piece/Pieces

1.product introduction A Wire To Board Connectors is an electrical connector that consists of two parts, a plug and a socket.The plug usually has a metal pin or contact point, and the socket has a corresponding jack or contact point, and the circuit is connected and disconnected by inserting and pulling.This Wire To...

Contact Now

4 Circuit Battery Connector 2.5MM Centers

• Brand: Antenk
• Packaging: bag packing,Tube packing, reel...
• Supply Ability: 2000K/Month
• Min. Order: 1000 Piece/Pieces

4 Circuit Battery Connector 2.5MM Centers H=3.0MM NOTES: 1.Housing:Thermoplastics LCP black Terminal:Phosphor bronze,T-015MM Peg:Brass T-0.2MM 2.Finish:Terminal:Gold Plated Peg:SN Plated 3.Packing:Reel Tape

Contact Now

PC BATTERY CLIP 52 FOR AAA A

• Brand: ANTENK
• Packaging: bag packing,Tube packing, reel...
• Supply Ability: 100000K/month
• Min. Order: 1000 Bag/Bags

ANTENK Electronics Co., Ltd(with the trade mark of "Antenk") was established in 2004. We specialize in producing precise Board to Board,Automotive Connector,Terminal Block Series,Battery Connector,Din41612 Connector,battery holders Series,Male Pin Headers Series,Female Pin Headers Series,Modular Jack RJ45...

Contact Now

Battery Contact Clip CR134A

• Brand: ANTENK
• Packaging: bag packing,Tube packing, reel...
• Supply Ability: 100000K/month
• Min. Order: 500 Bag/Bags

Antenk's Through Hole Clip Holder-Tin Nickel Plate Product Overview: Battery clips and blocks are designed to directly mount cylindrical cells to PCBs, with both through hole and surface mount options available. Although battery clips are less reliable than battery holders, contact blocks can deliver...

Contact Now

2.0mm Pitch 4Pin Battery Connector

• Brand: Antenk
• Packaging: bag packing,Tube packing, reel...
• Supply Ability: 2000K/Month
• Min. Order: 1000 Piece/Pieces

2.0mm Pitch 4P Battery Connector Specifications: NOTES 1. MATERIAL: A.Terminal:Phosphor Copper Gold Plated. B.Housing: LCP 2. ELECTRICAL SPECIFICATIONS: VOLTAGE RATING:50V CURRENT RATING:0.5A DIELECTRIC STRENGTH:500 VAC FOR I MINUTE MIN INSULATION RESISTANCE:500 MEG OHM MIN CONTACT RESISTANCE:30 MILL.OHM MAX &n

Contact Now
