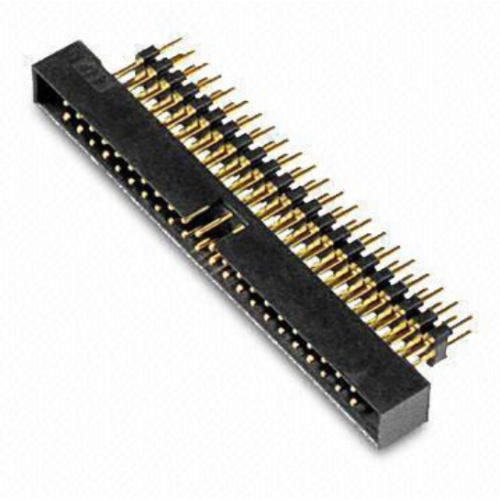

1.27*2.54mm Box Header 180° H=5.90 Add Housing

Introducing our latest innovation, the 1.27*2.54mm Box Header 180° H=5.90 with an added housing. This high-quality box header is designed to provide seamless connectivity and exceptional performance in various electronic applications. With a compact size of 1.27*2.54mm and a 180° angle, it ensures efficient space utilization and easy installation. The H=5.90 housing adds an extra layer of protection, safeguarding the header from external elements and enhancing durability. Trust this product to deliver reliable and stable connections, making it an ideal choice for your electronic projects. Upgrade your connectivity solutions with our 1.27*2.54mm Box Header 180° H=5.90 Add Housing today!

China Guangdong Shenzhen Antenk Electronics Co., Ltd. promoted a 1.27*2.54mm Box Header 180° H=5.90 Add Housing connector.
  Connector cooling knowledge

When the Box Header is designed for heat dissipation, the Box Header Connector will work hot. If the temperature is too high, it will affect the attenuation speed and stability of the LED. Therefore, the heat dissipation design of the PCB board and the ventilation and heat dissipation design of the cabinet will affect the performance of the LED product.

   SPECIFICATION
Current Rating:                       1.0Amp
Insulation Resistance:            1000MΩ  min
Contact Resistance:               20MΩ  max
 Withstand Voltage:                500V AC/DC
Operating Temperature:         -40°C  to  +105°C
Contact Material:                    Brass
Contact Plating:                     Au or Sn Over Ni
Insulator Material:         PA6T+30%GF UL 94V-0
