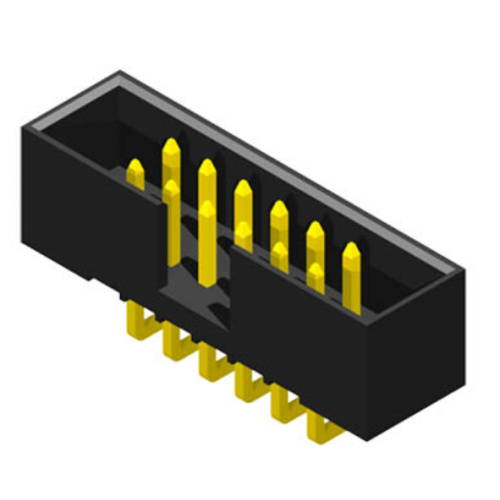

1.27*2.54mm Box Header 90° H=5.90

Introducing our high-quality 1.27*2.54mm Box Header 90° H=5.90, a must-have component for electronic enthusiasts and professionals alike. This box header is meticulously crafted to ensure precise connections and maximum durability. With its 90° angle design, it allows for easy and efficient PCB mounting, saving you valuable space on your projects. The 1.27*2.54mm pitch guarantees compatibility with a wide range of applications, making it an essential tool for circuit board assembly. Trust in the exceptional performance and reliability of our Box Header, designed to meet the highest industry standards. Upgrade your electronics with this popular product today!

China Shenzhen Antenk Electronics Co., Ltd. introduced a 1.27*2.54mm Box Header 90° H=5.90 Type connector.
RF and shielded connectors:

There are sometimes special electrical requirements, a special case where the connector needs to be screened through the connector or there are more stringent requirements for the connector to form part of the RF feeder. In these cases, the connector may in nature need to be coaxial, where two conductors are made such that one conductor surrounds the other. For RF connectors, the requirements may be more stringent because the characteristic impedance of the feeder needs to be maintained through the connector.

   SPECIFICATION
Current Rating:                       1.0Amp
Insulation Resistance:            1000MΩ  min
Contact Resistance:               20MΩ  max
 Withstand Voltage:                500V AC/DC
Operating Temperature:         -40°C  to  +105°C
Contact Material:                    Brass
Contact Plating:                      Au or Sn Over Ni
Insulator Material:        PA6T+30%GF UL 94V-0
