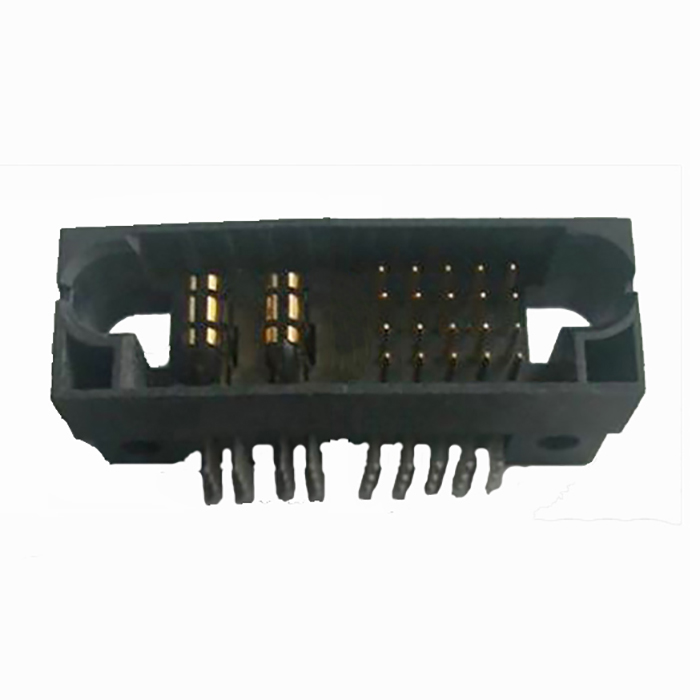

7.62MM 20P Signal Male Power Connector

Introducing the 7.62MM 20P Signal Male Power Connector, the ultimate solution for seamless power transmission and signal connectivity. This high-quality connector is specifically designed to meet the demands of modern electronic devices, ensuring a reliable and efficient performance. With its durable construction and precise engineering, it guarantees a secure and stable connection, eliminating any risk of signal loss or power interruption. The 7.62MM 20P Signal Male Power Connector is compatible with a wide range of applications, making it the go-to choice for professionals and enthusiasts alike. Upgrade your power and signal transmission today with this exceptional connector.

7.62MM 2P Power+20P Signal Male Straight Dip Power Connector

1.Material:
 A.Terminal:Phosphor Copper C5191
 B.Housing:PA9T+30% G/F UL94V-0 Color: Black
2.Plating:
 Signal Contact: 30u-50u Nickel Plated, 1U Gold Plated
 Power Contact: 30u-50u Nickel Plated, 1U Gold Plated3.
3.Electrical Performance Requirements:
 Rated Voltage: Signal Contact: 60V; Power Contact: 250V
 Rated Current: Single Power Contact Max 40A; All Power Contacts
 Max 1.5A; Single Signal Contact Max 3A; All Signal Contacts Max 1.5A
 Withstand  Voltage:Leakage Current: Contact Voltage: 1000 VDC Less
 Than 1 mA / Min, Between Power Contacts and Between Power and Signal
 Contacts:2500Vdc / Min, Leakage Current Less Than 1mA
 Insulation resistance: Between Signal Contacts: 500MΩ;
                        Between Power Contacts: 500M Ω
                        And Signal Contact: 10000M Ω
 Working Temperature: -40~+125℃(Including The Temperature Rise of 40 ℃);
