7.62MM 2P 4P Signal Power Connector

"Finally, a connector that can handle your boss's electrifying power trips!"

$500

≥1000
Piece/Pieces

Payment Type:

T/T,Paypal

Incoterm:

FOB,CIF,EXW,FCA

1000

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Air,Express

Port:

Shenzhen

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: PSPF7.62S-0204G0G0AEX

Brand: ANTENK

Place Of Origin: China

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packing

Productivity: 2000K/month

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 2000K/month

Certificate: ISO9001

HS Code: 8536909000

Port: Shenzhen

Payment Type: T/T,Paypal

Incoterm: FOB,CIF,EXW,FCA

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: bag packing,Tube packing, reel packing

Introducing the 7.62MM 2P 4P Signal Power Connector, the ultimate solution for professionals who love to connect things with a bang! This connector is like the superhero of the electrical world, ensuring your signals and power are united in perfect harmony. It's so versatile that even your grandma could use it to power her knitting machine while signaling the neighbors about her latest creation. With its sleek design and robust build, this connector will make you feel like a true power-crazed genius. So, if you're tired of boring connectors that lack pizzazz, grab the 7.62MM 2P 4P Signal Power Connector and let the sparks fly!

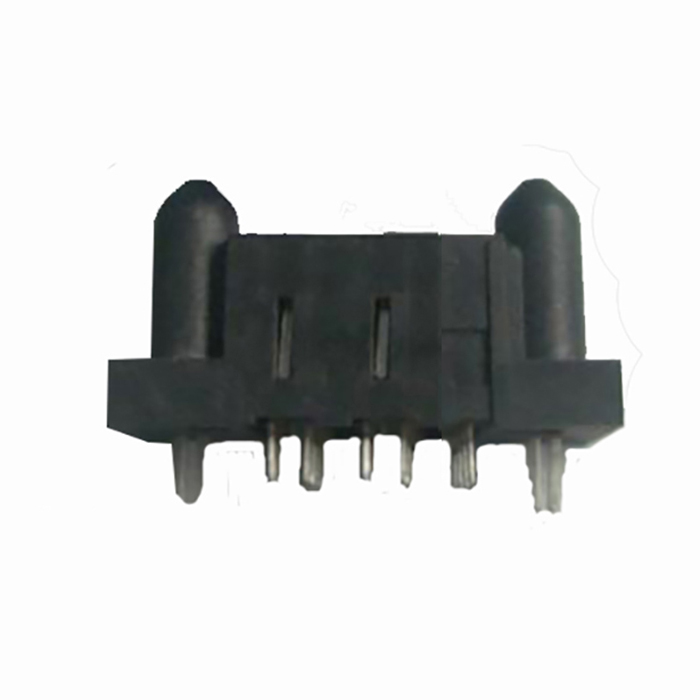

7.62MM 2P Power+4P Signal Female Straight Dip Power Connector

Specifications:
1.Material:
A.Terminal:Phosphor Copper C5191
B.Housing:PA9T+30% G/F UL94V-0 Color: Black
2.Plating:
Signal Contact: 30u-50u Nickel Plated, 1U Gold Plated
Power Contact: 30u-50u Nickel Plated, 1U Gold Plated3.
3.Electrical Performance Requirements:
Rated Voltage: Signal Contact: 60V; Power Contact: 250V
Rated Current: Single Power Contact Max 40A; All Power Contacts
Max 1.5A; Single Signal Contact Max 3A; All Signal Contacts Max 1.5A
Withstand Voltage:Leakage Current: Contact Voltage: 1000 VDC Less
Than 1 mA / Min, Between Power Contacts and Between Power and Signal
Contacts:2500Vdc / Min, Leakage Current Less Than 1mA
Insulation resistance: Between Signal Contacts: 500MΩ;
Between Power Contacts: 500M Ω
And Signal Contact: 10000M Ω
Working Temperature: -40~+125℃(Including The Temperature Rise of 40 ℃);
