Type-C 16P Female Waterproof 90 SMT Type

Get Latest Price

Payment Type:

L/C,T/T,Paypal

Incoterm:

CFR,EXW

Min. Order:

1 Piece/Pieces

Transportation:

Ocean,Air,Express

Port:

shenzhen,huizhou

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: WU3.1FM76-X-X-X-X-X

Brand: Antenk

Supply Ability & Additional Information

Packaging: tray packing

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 100000/month

Certificate: ISO9001/ISO14001

Port: shenzhen,huizhou

Payment Type: L/C,T/T,Paypal

Incoterm: CFR,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: tray packing

1.product introduction

Vertical USB Connector is an interface standard used to connect computers to external devices.It allows the connection of external devices such as mice, keyboards, storage devices, printers, etc., through a single port.With convenience and reliability, USB connectors are widely used in personal computers and mobile devices.

Today, various device types use Universal Serial Bus (USB) as the standard connection type.They have created a compact, low-cost interface that facilitates computer communication and plays a pivotal role in the electrical appliance industry.

At present, there are different types of USB connectors available, and have different functional characteristics, mainly divided into the following:

USB Type-A: Universal, common USB interface, often used to connect computers or chargers.

USB Type-B: Mainly used to connect external devices, such as printers or scanners.

USB Type-C(Waterproof USB): The latest USB interface standard, with higher data transfer speed and more features, such as two-way data transfer and charging.

Micro-USB: Commonly used in mobile devices such as smartphones and tablets.

Mini-USB: A smaller USB port, commonly used in digital cameras and MP3 players.

Lightning cable: It is a relatively durable data cable. The exterior of the data cable is made of high-strength steel material, and the durability reaches industrial level.

2.product parameter

SPECIFICATION:

1. CURRENT RATING: 3.0A MAX

2. VOLTAGE: 100 VAC

3. TEMPERATURE RANGE: -30 °C ~ 85 °C

4. CONTACT RESISTANCE: 40 MILLIONHM MAX

5. INSULATION RESISTANCE: 100 MEGOHMS MIN.

6. LNSERTION FORCE : 5N~20N

7. UNMATING FORCE: 8N~20N

8. DURABILITY: 10,000 CYCLES

9. WATER PROOFNESS:THISPRODUCTIS BASED ON IPX6/IPX7.

3.product picture

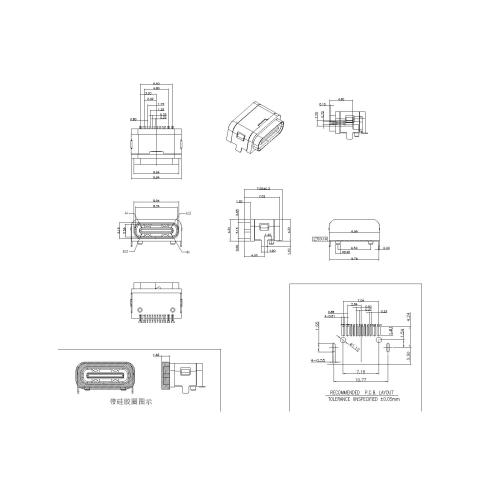

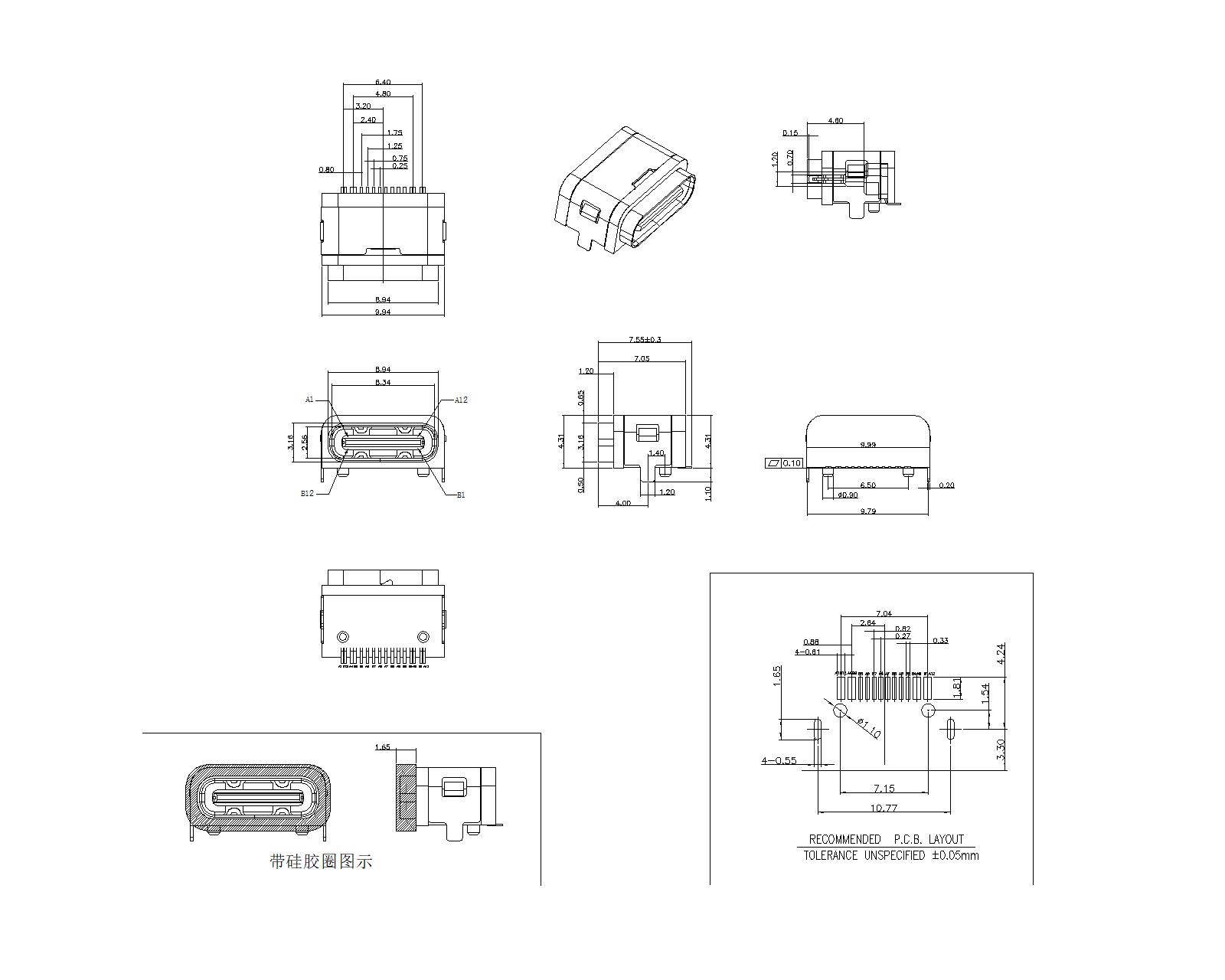

WU3.1FM76-X-X-X-X-X Type-C 16P Female Waterproof 90° SMT Type,with two legs DIP Type

4.FAQ

Q: Which certificate do you have?

A: CE, FDA and ISO13485.

Q: Do you have the test and audit service?

A: Yes, we can assist to get the designated test report for product and the designated factory audit report.

Q: What’s is your shipping service?

A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.
