Type-C 16P Female Waterproof 180° DIP Type

Get Latest Price

Payment Type:

L/C,T/T,Paypal

Incoterm:

CFR,EXW

Min. Order:

1 Piece/Pieces

Transportation:

Ocean,Air,Express

Port:

shenzhen,huizhou

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: WU3.1FM63-L-L-B-X-X

Brand: Antenk

Supply Ability & Additional Information

Packaging: tray packing

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 100000/month

Certificate: ISO9001/ISO14001

Port: shenzhen,huizhou

Payment Type: L/C,T/T,Paypal

Incoterm: CFR,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: tray packing

1.product introduction

The Universal Serial Bus (USB) connector is an interface standard used to connect computers to external devices.It allows the connection of external devices such as mice, keyboards, storage devices, printers, etc., through a single port.With convenience and reliability, USB connectors are widely used in personal computers and mobile devices.

Today, various device types use Universal Serial Bus (USB) as the standard connection type.They have created a compact, low-cost interface that facilitates computer communication and plays a pivotal role in the electrical appliance industry.

At present, there are different types of USB connectors available, and have different functional characteristics, mainly divided into the following:

USB Type-A: Universal, common USB interface, often used to connect computers or chargers.

USB Type-B: Mainly used to connect external devices, such as printers or scanners.

USB Type-C: The latest USB interface standard, with higher data transfer speed and more features, such as two-way data transfer and charging.

Micro-USB: Commonly used in mobile devices such as smartphones and tablets.

Mini-USB: A smaller USB port, commonly used in digital cameras and MP3 players.

Lightning cable: It is a relatively durable data cable. The exterior of the data cable is made of high-strength steel material, and the durability reaches industrial level.

2.product parameter

SPECIFICATION:

1.CURRENT RATING: 3.0 A

2.VOLTAGE RATING: 3.0 V

3.VBUS & GND PINS AND OTHER PINS: 40mΩ/PIN MAX

SHIELD: 50mΩ/MAX

LLCR MAX. CHANGE OF ALL PINS: 10Ωm

4.INSULATION RESISTANCE: 100MΩ MIN

5.DIELECTRIC WITHSTAND VOLTAGE,AC 100V FOR 1MINUTE

6.LNSERTION FORCE: 0.5~2.0kgf

7.UNMATING FORCE: 0.8-2.0kgf

8.DURABILITY: 10000 CYCLES

9.OPERATING TEMPERATURE: -35°C~+85°C

10.THE PEAK TEMPERATURE ON THE BOARO SHALL

BE MAINTAINED FOR 10 SECONDS AT 210-230°C

11.WATERPROOF:IP-X7.

3.product picture

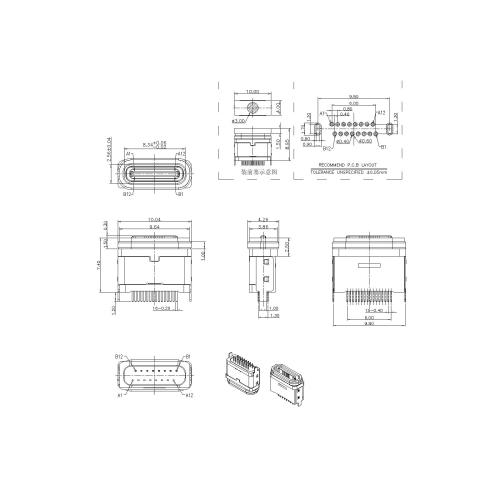

WU3.1FM63-L-L-B-X-X Type-C 16P Female Waterproof 180° DIP Type L=7.45mm with Cambered

4.FAQ

Q: When can I get the price?

A: Usually we quote within 8 hours after we get your inquiry.

Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.

Q: How long is your delivery time?

A: The general delivery time is 30-45 days after receiving your order confirmation. Anther, if we have the goods in stock, it will only take 1-2 days.
