Home > Products > USB Connector > Waterproof USB > Waterproof 90° SMT H6.65,With Steel Sheet
Waterproof 90° SMT H6.65,With Steel Sheet
  • Waterproof 90° SMT H6.65,With Steel Sheet

Waterproof 90° SMT H6.65,With Steel Sheet

Payment Type:
L/C,T/T,Paypal
Incoterm:
EXW,CFR
1000
Min. Order:
1000 Piece/Pieces
Transportation:
Ocean,Air,Express
Port:
shenzhen,huizhou
Share:
Chat Now
  • Product Description
< >
Overview
Product Attributes

Model No.: WU3.1FM14-Z-X-C-S0-X Type-C

Brand: Antenk

Supply Ability & Additional Information

Packaging: reel/tray packing

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 100000/month

Certificate: ISO9001/ISO14001

Port: shenzhen,huizhou

Payment Type: L/C,T/T,Paypal

Incoterm: EXW,CFR

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
reel/tray packing
1.product introduction
The Universal Serial Bus (USB) connector is an interface standard used to connect computers to external devices.It allows the connection of external devices such as mice, keyboards, storage devices, printers, etc., through a single port.With convenience and reliability, USB connectors are widely used in personal computers and mobile devices.
Today, various device types use Universal Serial Bus (USB) as the standard connection type.They have created a compact, low-cost interface that facilitates computer communication and plays a pivotal role in the electrical appliance industry.
At present, there are different types of USB connectors available, and have different functional characteristics, mainly divided into the following:
USB Type-A: Universal, common USB interface, often used to connect computers or chargers.
USB Type-B: Mainly used to connect external devices, such as printers or scanners.
USB Type-C: The latest USB interface standard, with higher data transfer speed and more features, such as two-way data transfer and charging.
Micro-USB: Commonly used in mobile devices such as smartphones and tablets.
Mini-USB: A smaller USB port, commonly used in digital cameras and MP3 players.
Lightning cable: It is a relatively durable data cable. The exterior of the data cable is made of high-strength steel material, and the durability reaches industrial level.

2.product parameter
   1.CURRENT RATING: 3.0 A
   2.VOLTAGE RATING: 3.0 V
   3.VBUS & GND PINS AND OTHER PINS: 40mΩ/PIN MAX
       SHIELD: 50mΩ/MAX
       LLCR MAX. CHANGE OF ALL PINS: 10Ωm
   4.INSULATION RESISTANCE:  100MΩ MIN
   5.DIELECTRIC WITHSTAND VOLTAGE,AC 100V FOR 1MINUTE
   6.INSERTION FORCE: 0.5~2.0kgf
   7.UNMATING FORCE: 0.8-2.0kgf
   8.DURABILITY: 10000 CYCLES
   9.OPERATING TEMPERATURE: -35°C~+85°C
   10.THE PEAK TEMPERATURE ON THE BOARD SHALL
        BE MAINTAINED FOR 10 SECONDS AT 210-230°C
  11.WATERPROOF:IP-X7.

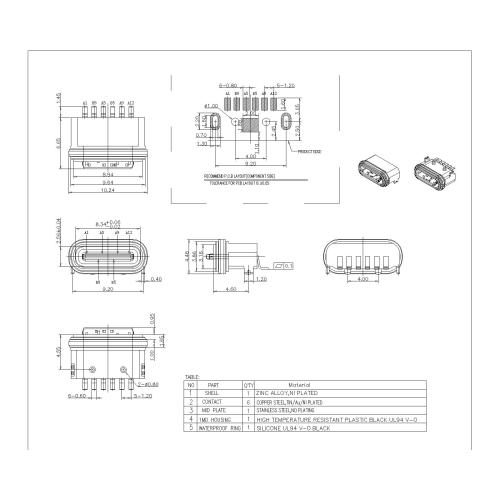

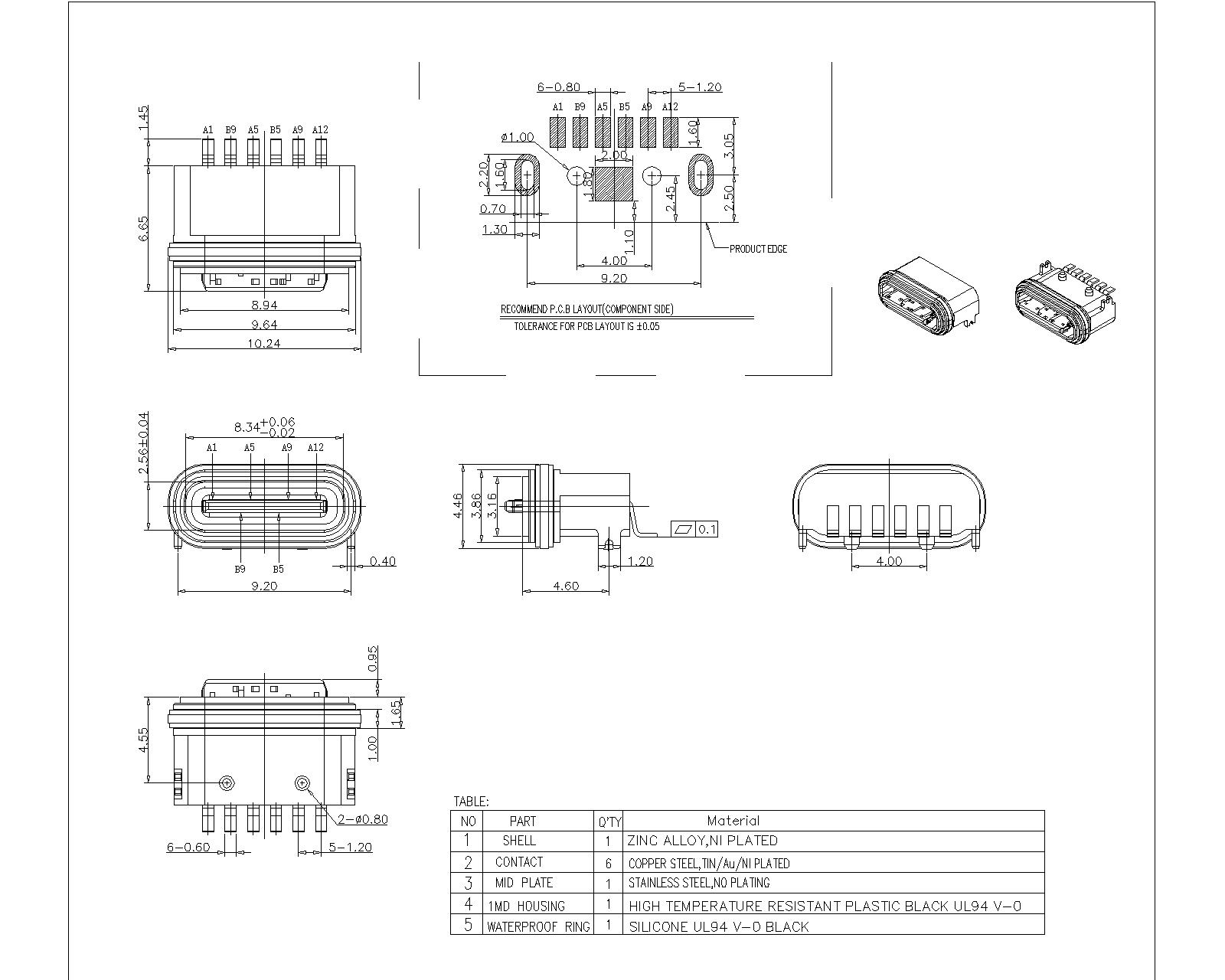

3.product picture
WU3.1FM14-Z-X-C-S0-X Type-C 6P Female Waterproof 90° SMT H=6.65,With Steel Sheet，With Two Legs,With Two Boss

4.FAQ

Q: Are you trading company or manufacturer?

A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.
