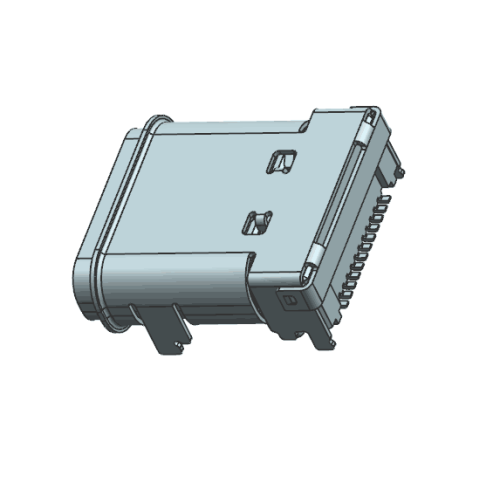

USB 3.1 Waterproof H3.46mm dip

Get Latest Price

Payment Type:

L/C,T/T,Paypal

Incoterm:

CFR,EXW

1000

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Air,Express

Port:

shenzhen,huizhou

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: WMUFM06

Brand: Antenk

Supply Ability & Additional Information

Packaging: reel/tray packing

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 100000/month

Certificate: ISO9001/ISO14001

Port: shenzhen,huizhou

Payment Type: L/C,T/T,Paypal

Incoterm: CFR,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: reel/tray packing

1.product introduction

The Universal Serial Bus (USB) connector is an interface standard used to connect computers to external devices.It allows the connection of external devices such as mice, keyboards, storage devices, printers, etc., through a single port.With convenience and reliability, USB connectors are widely used in personal computers and mobile devices.

Today, various device types use Universal Serial Bus (USB) as the standard connection type.They have created a compact, low-cost interface that facilitates computer communication and plays a pivotal role in the electrical appliance industry.

At present, there are different types of USB connectors available, and have different functional characteristics, mainly divided into the following:

USB Type-A: Universal, common USB interface, often used to connect computers or chargers.

USB Type-B: Mainly used to connect external devices, such as printers or scanners.

USB Type-C: The latest USB interface standard, with higher data transfer speed and more features, such as two-way data transfer and charging.

Micro-USB: Commonly used in mobile devices such as smartphones and tablets.

Mini-USB: A smaller USB port, commonly used in digital cameras and MP3 players.

Lightning cable: It is a relatively durable data cable. The exterior of the data cable is made of high-strength steel material, and the durability reaches industrial level.

2.product parameter

1.MATERIAL:

1.1 Insulator:high temperature plastic UL94V-0

1.2 Contact:Copper alloy(t=0.15mm)

1.3 Shell:stainless steel(t=0.20mm)

2.ELECTRICAL CHARACTERISICS:

2.1 Contact resistance:40mΩMax for initial,10mΩ

Change after test,measure at 20mV,100mA

2.2 Contact current rating:5A for collectively

power supply Pin(PINA1,A4,A9,A12,B1,B4,B9,B12);1.25A

For Vconn Pin ;0.25A FOR Other signal pin

2.3 Dielectric withstanding voltage:100v ac r.m.s

2.4 Insulation resistance 100MΩ Min

2.5 Operating temperature:-40℃-85℃

3.MECHANICAL CHARACTERISTICS

3.1Mating force:5-20N

3.2Unmated force:6-20N after test

4.Plating:

4.1Terminal contact:(see tab)gold plating all

over 50u"Min nickel and 80u"min tin all over 50u"

min nickel on solder area

4.2 Out shell:50u"Min.Nickel all over

4.3 Inner shell:Degrease

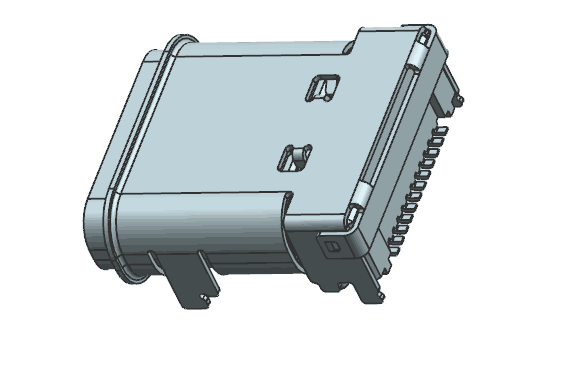

3.product picture

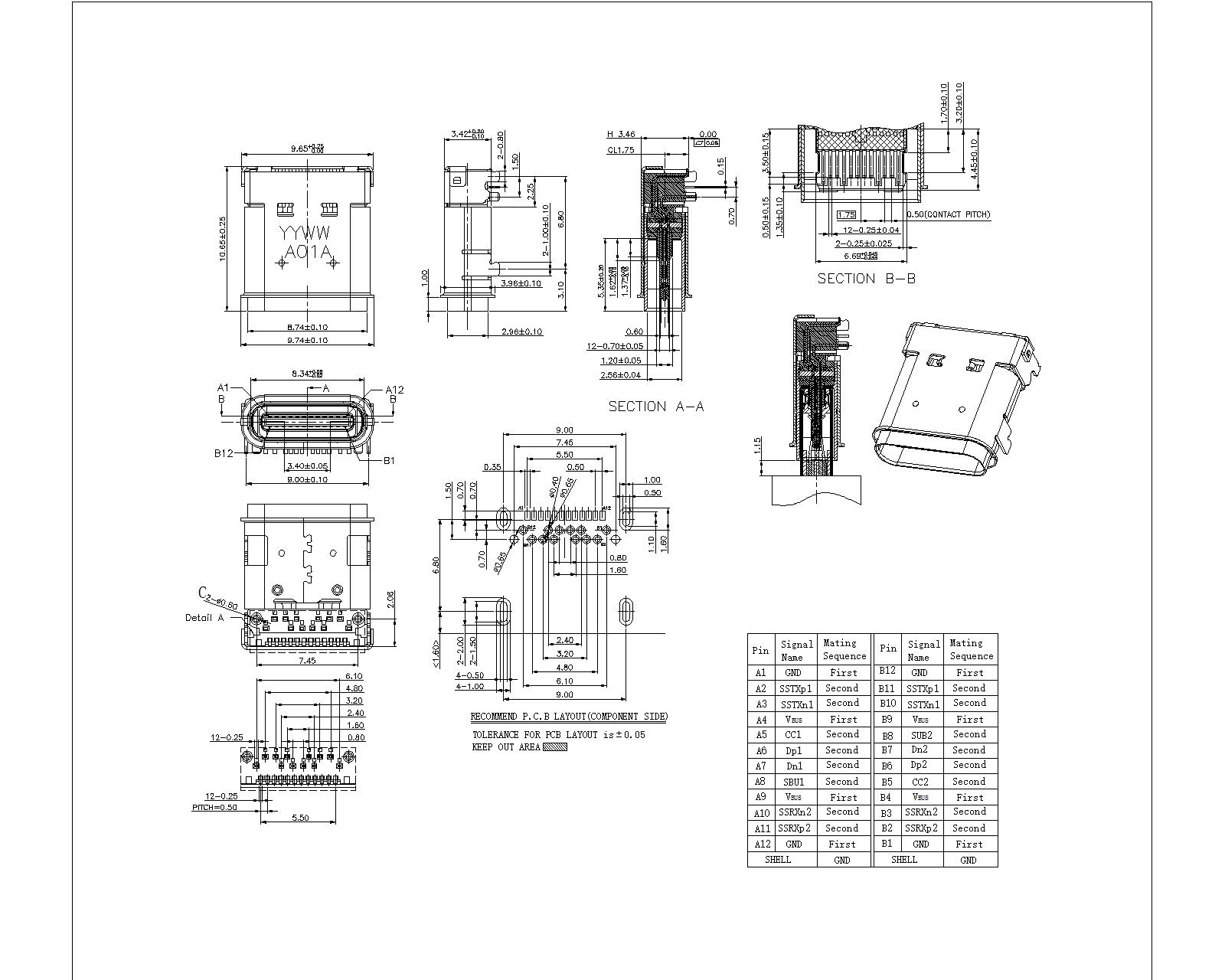

WMUFM06 USB 3.1 CF Waterproof CL1.75 H3.46mm

4.FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
