Micro USB 5P Receptacle B Type Solder

Introducing the Micro USB 5P Receptacle B Type Solder: the superhero of all connectors! This tiny powerhouse will save you from the tangled web of cables and bring order to your charging chaos. With its soldering skills that would make even Iron Man jealous, this receptacle ensures a secure connection that won't leave you hanging (literally). Say goodbye to those frustrating moments of trying to plug in your charger the wrong way, because this bad boy is reversible! So, whether you're a tech wizard or just a regular Joe, this Micro USB Receptacle is here to make your charging experience a true marvel.

Micro USB 5P Receptacle B Type Solder With Jacket  Specifications

Specifications:
Current Rating:              1A Max
Contact Resistance:           50 milliohms MAX
Dielectric Withstanding Voltage: 100V AC AT Sea Levol
Insulation Resistance:        100 MEGA ohms MIN
Housing:
Temperature Thermoplastics,LCP UL 94V-0
Jacket: PBT UL 94V-0
Contact:
Copper Alloy T=0.20mm Piated Gold in Mating Area;
Tin On Solder Talls
Shell:Brass T=0.25mm Nickel/Plating

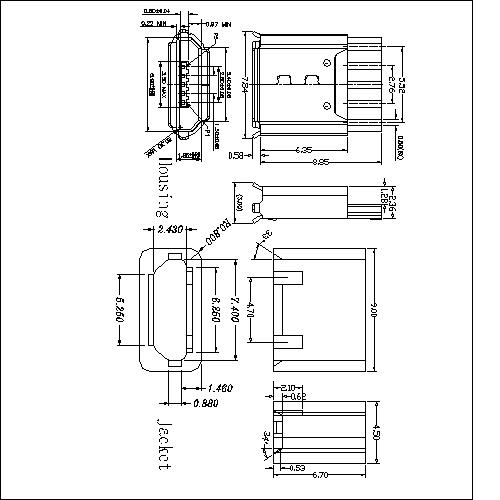

Micro USB 5P Receptacle B Type Solder With Jacket  Dimensions:
