D-SUB PCB Male Dual Row Straight Type

1.product introduction

D-SUB

D-Sub connectors can be used for power, analog, RF, or digital signal transmission, and are generally easy to service/replace/install in the field.This connector style can be used in a wide range of applications, from temperature-controlled data centers to harsh combat environments.Mainly used in telecommunications, industrial control, data transmission, aviation, aerospace, military industry and other fields;Usually applied with PCB or CABLE, as I/0 interface, with shielding function;It is usually used in telecommunications equipment, data exchange equipment, routers, switches, servers and other equipment.

The D-Sub connector was once one of the smallest connectors used in computer systems.They are named for their D-shaped metal connector housing.The metal housing surrounds two or more parallel rows of pins or sockets that transmit data in series.There are five different connector housing sizes.Each housing size can have two different pin configurations.The standard housing size has two rows of pins, and the high-density version has three rows of pins.

2.product parameter

MATERIAL:

   Insuiator:See ordering info for colour type

   Contact:Copper alloy

   Shell:Steel,100U" Nickel over 50U"min copper

   Boardlock:Brass Tin plated

   Screwlock:Steel,nickel plated

SPECIFICATION：

   Contact Resistance:20 milliohms

    Max at 1AMP DC

   Lusulation Resistance: 1000M  MIN. At 500VDC

   Dielectric Withstanding voltage: 1000V VAC /rms 60Hz for 1 minute

  Current Rating:3 AMP

  Volatge Rating:250VAC/rms 60Hz

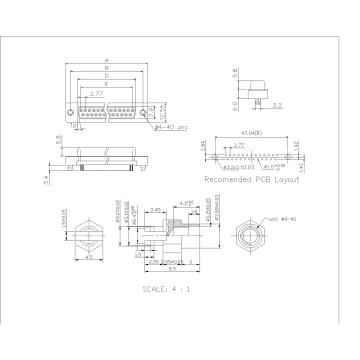

3.product picture
