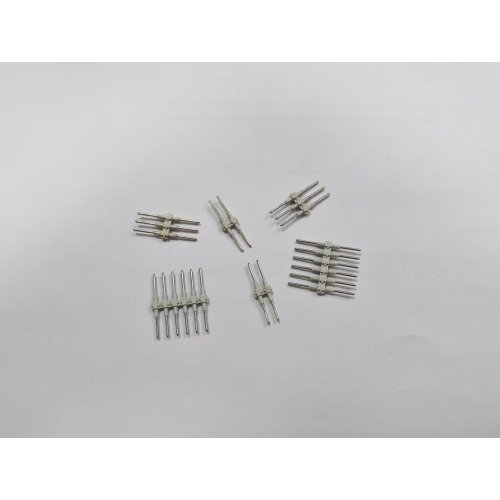

LED Terminal Block Male Pitch 3.0 180

Get Latest Price

Payment Type:

L/C,T/T,Paypal

Incoterm:

CFR,EXW

Min. Order:

1 Piece/Pieces

Transportation:

Ocean,Express,Air

Port:

shenzhen,huizhou

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: ATL001M-X-SN-A

Supply Ability & Additional Information

Packaging: bag packing

Transportation: Ocean,Express,Air

Supply Ability: 100000/month

Port: shenzhen,huizhou

Payment Type: L/C,T/T,Paypal

Incoterm: CFR,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: bag packing

1.product introduction

Terminal station is an electronic component used for circuit connection, also known as Terminal Block, electrical connector, etc.According to the shape, the circular electric connector is the most used in military equipment (aviation and aerospace) due to its own structural characteristics.Rectangular electrical connectors are more commonly used for printed circuit boards of electronic devices because of their simple structure.According to the structure: threaded connection, bayonet (fast) connection, card lock connection, push-pull connection, straight insert connection, etc.According to the contact end connection form: crimping, welding, winding;Screw (cap) fixed;According to environmental protection: environmental resistance electrical connector and ordinary electrical connector.The electrical connector consists of a fixed-end electrical connector (hereinafter referred to as a socket) and a free-end electrical connector (hereinafter referred to as a plug).The socket is fixed on the electrical parts through its square (round) disk (individual welding method), the plug is generally connected to the cable, and the plug and socket are connected by connecting the nut.

2.product parameter

Current Rating: 3Amp

Insulation Resistance: 100MΩ min.at DC 500V

Contact Resistance: 20mΩ max

Withstand Voltage: AC 500V For 1 Minute

Operating Temperature: -40°C to +85°C

Contact Material:CuZn35 Brass

Contact Plating: Sn Over Ni

Insulator Material:PA66,UL 94V-0

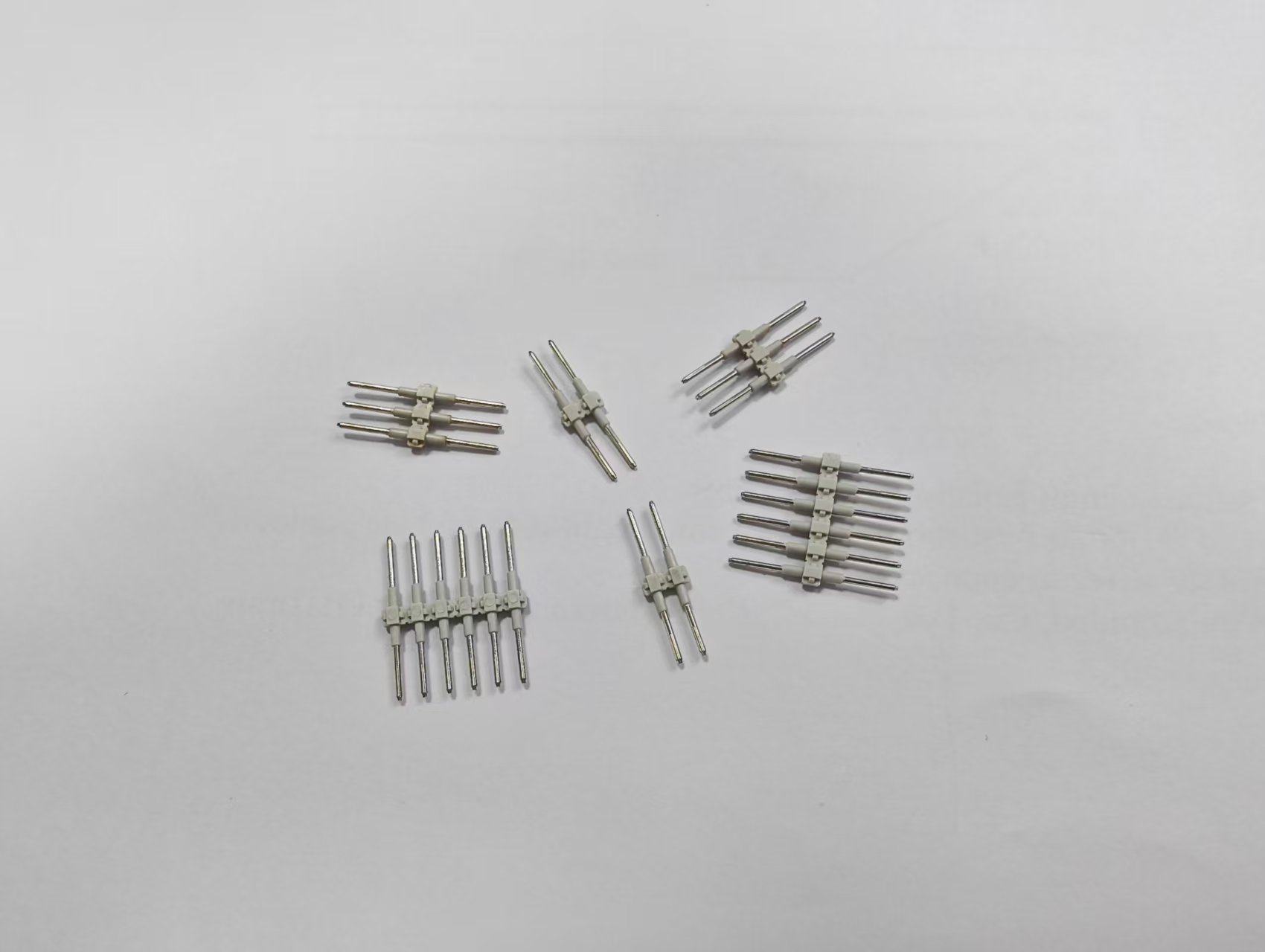

3.product picture

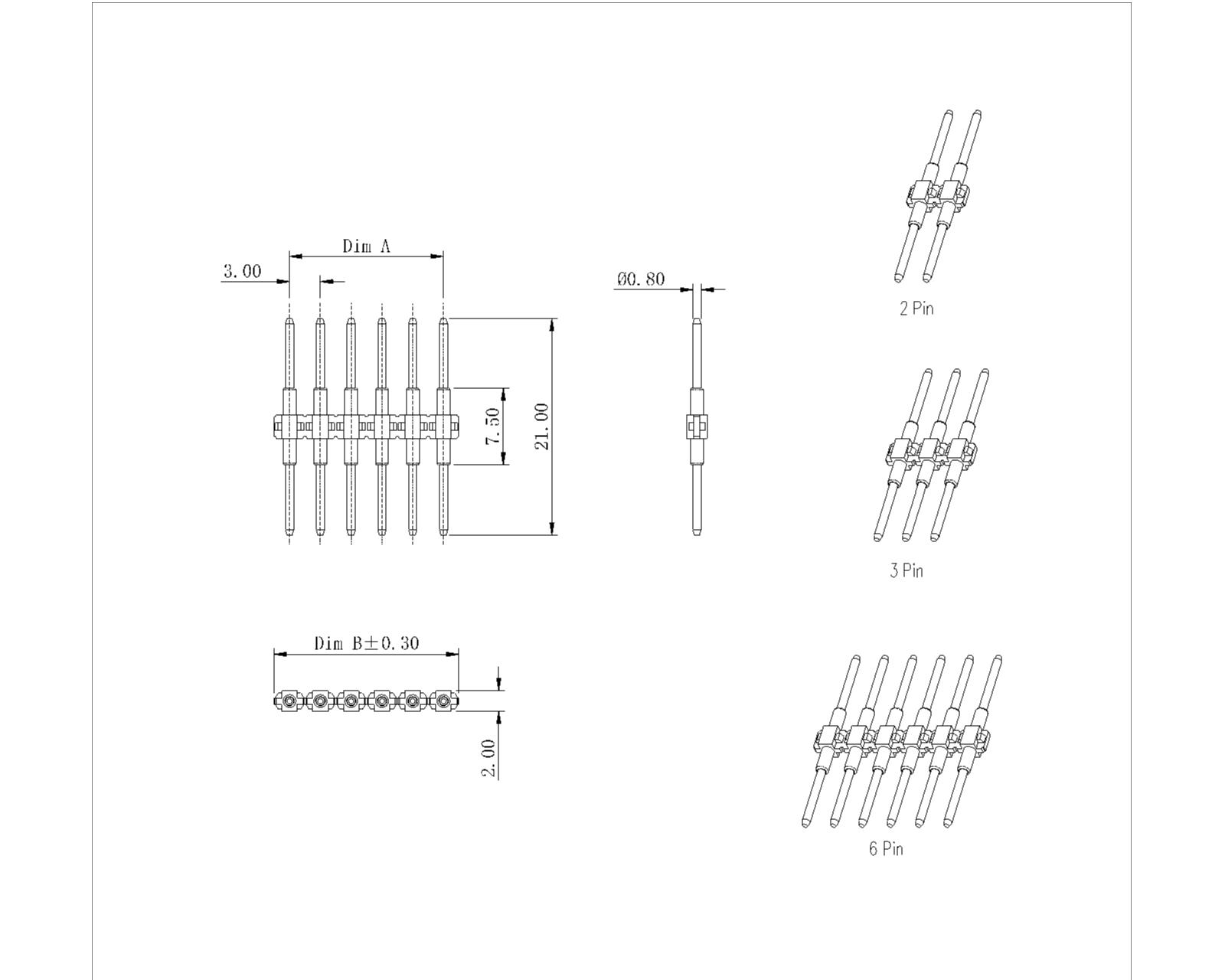

ATL001M-X-SN-A LED Terminal Block Male Pitch

4.FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Product Categories : Terminal Block > LED Terminal Block
