D-SUB LHF Series Male Solder Type 60P

1.product introduction

D-Sub connectors can be used for power, analog, RF, or digital signal transmission, and are generally easy to service/replace/install in the field.This connector style can be used in a wide range of applications, from temperature-controlled data centers to harsh combat environments.Mainly used in telecommunications, industrial control, data transmission, aviation, aerospace, military industry and other fields;Usually applied with PCB or CABLE, as I/0 interface, with shielding function;It is usually used in telecommunications equipment, data exchange equipment, routers, switches, servers and other equipment.

The D-Sub connector was once one of the smallest connectors used in computer systems.They are named for their D-shaped metal connector housing.The metal housing surrounds two or more parallel rows of pins or sockets that transmit data in series.There are five different connector housing sizes.Each housing size can have two different pin configurations.The standard housing size has two rows of pins, and the high-density version has three rows of pins.

2.product parameter

 MATERIAL:

   HOUSING:LCP.BLACK COLOUR,UL 94V-0

   SHELL:SPCC,FRONT SHELL NICKEL PLATING

   BACK SHELL TIN PLATING

   TERMINAL:BRASS  3U"GOLD PLATING ON MATING

   ARE A  TIN ON THE SOLDERING ARE A

   OR

   30U" GOLD PLATING ON MATING ARE A  TIN ON

   THE SOLDERING ARE A

 OPERATING TEMPERATURE:-20°C~80°C

 CURRENT RATING:3A PRE CONTACT

 VOLTAGE RATING: 40V

 CONTACT RESISTANCE:20MΩ MAX

 INSULATOR RESISTANCE:100MΩ min.

 DIELECTRIC WITHSTANDING VOLTAGE: 500V AC min.

 MATING FORCE:4.5 Kgf MAX.

 UNMATING FORCE:1.0Kgf min,

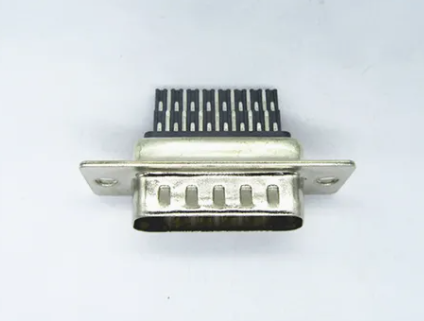

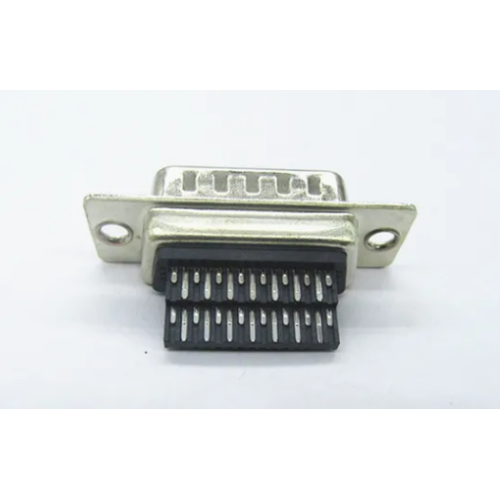

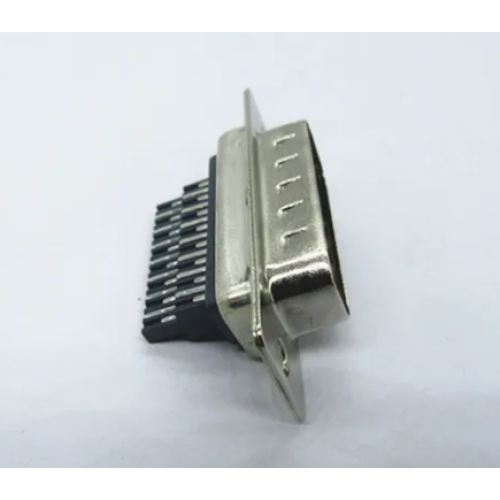

3.product picture
