0.8mm 26P Shielded Solder Cable Connector
  • 0.8mm 26P Shielded Solder Cable Connector

0.8mm 26P Shielded Solder Cable Connector

"Enhanced Connectivity and Precision: Explore the Versatility of the 0.8mm 26P Shielded Solder Cable Connector"

  • $500
    ≥1000
    Piece/Pieces
Payment Type:
T/T,Paypal
Incoterm:
FOB,CIF,EXW,FCA
1000
Min. Order:
1000 Piece/Pieces
Transportation:
Ocean,Air,Express
Port:
Shenzhen
Share:
Chat Now
  • Product Description
< >
Overview
Product Attributes

Model No.: SDR-M-V26-X

Brand: ANTENK

Place Of Origin: China

Operating Frequency: High Frequency

Terminal Structure: Terminal Under the Premium

Housing: Plastic

Circuit: 1-400

Impedance: 85-100 Ohms

Mated Height: Other

Gender: Other

Application: military

Certification: Other

Pitch: 1.27mm

Interface Type: AC/DC

Support Card Number: Other

Terminal Material: Copper Alloy

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packing

Productivity: 2000K/month

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 2000K/month

Certificate: ISO9001

HS Code: 8536909000

Port: Shenzhen

Payment Type: T/T,Paypal

Incoterm: FOB,CIF,EXW,FCA

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
bag packing,Tube packing, reel packing

Introducing the 0.8mm 26P Shielded Solder Cable Connector, a reliable and versatile solution for your connectivity needs. This high-quality connector is designed to ensure seamless and secure connections between cables, providing efficient signal transmission. With a shielded design, it offers superior protection against electromagnetic interference, ensuring clear and uninterrupted data transfer. The 0.8mm pin pitch allows for easy soldering, making installation hassle-free. Whether you're working on electronic projects, audio systems, or industrial applications, this shielded solder cable connector is an ideal choice. Trust in its durability and performance to deliver exceptional results every time.

0.8mm Shielded 26P Cable Plug Connector Solder Molded Ribbon Type


Specifications

Voltage Rating：25V AC/RMS
Current Rating：0.5A
Contact Resistence: 70mΩ Max
Withstanding Voltage：350V AC/minute
Insulation Resistance: 1000MΩ min at 25V DC
Temperature Range：-40℃-+70℃

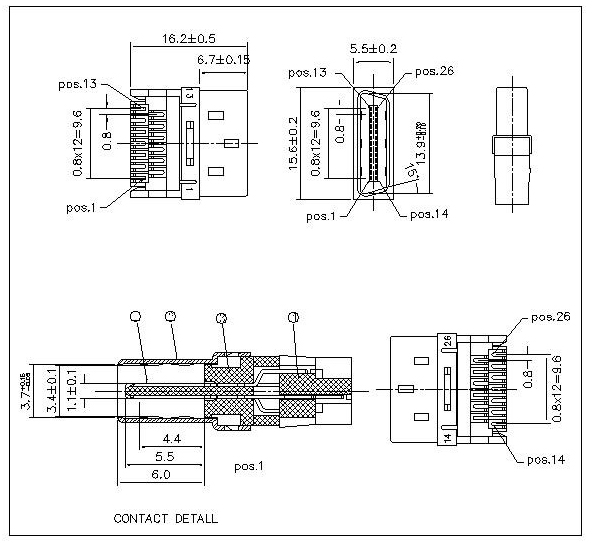

SDR-M-V26-X 0.8mm Series Shielded 26P Cable Plug Connector Solder Molded Ribbon Type


Product Categories : SCSI Connectors > SDR+V.26 SCSI Section
