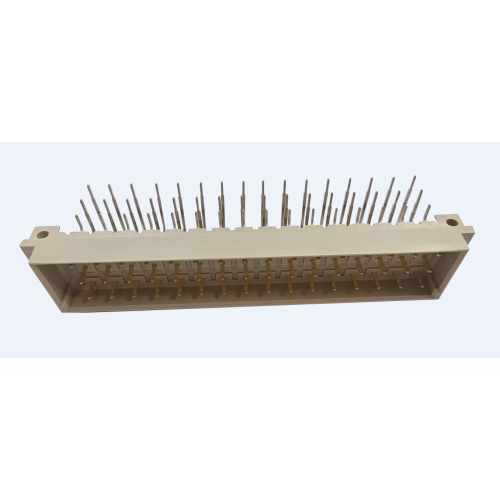

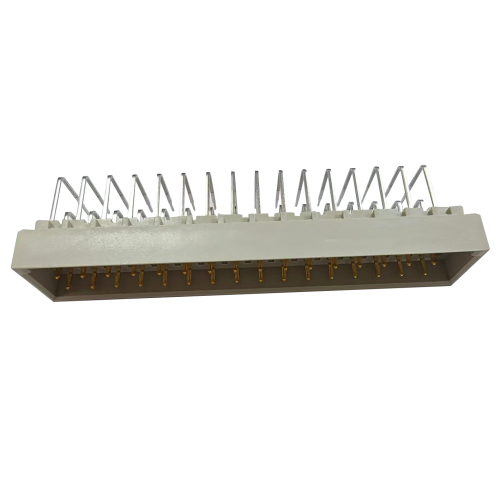

DIN41612 Right Angle Male Type High Power 48P
  • DIN41612 Right Angle Male Type High Power 48P
  • DIN41612 Right Angle Male Type High Power 48P

DIN41612 Right Angle Male Type High Power 48P

Payment Type:
L/C,T/T,Paypal
Incoterm:
CFR,EXW
1
Min. Order:
1 Piece/Pieces
Transportation:
Ocean,Air,Express
Port:
shenzhen,huizhou
Share:
Chat Now
  • Product Description
< >
Overview
Product Attributes

Model No.: DMR-48-X-X-X-D09

Brand: Antenk

Supply Ability & Additional Information

Packaging: tray packing

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 100000/month

Certificate: ISO9001/ISO14001

Port: shenzhen,huizhou

Payment Type: L/C,T/T,Paypal

Incoterm: CFR,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
tray packing
1.product introduction
Din41612 Connector is a European standard and widely used connector, usually used in the chassis, connecting the signal and power lines between modules or cards on the circuit board.It features a variety of wire termination methods, including rising cage clamps, wire protectors, springs, IDC and crimp clasp.The connection forms are parallel connection and vertical connection.High-current connectors use special electrical contacts to ensure low resistance and the contact pressure needed to ensure stable electrification.Electrical contact is achieved by using a reed as an electrical contact between the socket and the plug to achieve stable power.The electrical contact is the key component that determines the performance of the connector

2.product parameter
Rated Current额定电流:6.0AMP
Contact Resistance接触电阻:20mΩ Max
Withstand Voltage耐电压: 1000V AC交流/DC直流
Insulation Resistance绝缘电阻:1000MΩ Min最小
Operation Temperature工作温度:-55°C to + 125°C
Contact Material端子材料:Copper Alloy铜合金
Contact Plating端子电镀:Au Over Ni 镍底镀金
Insulator Material胶芯材质:PBT(UL94V-0)
Max.Processing Temp最大焊接温度: 180°C for 30- 60 seconds秒
(200°C for 10 seconds秒)

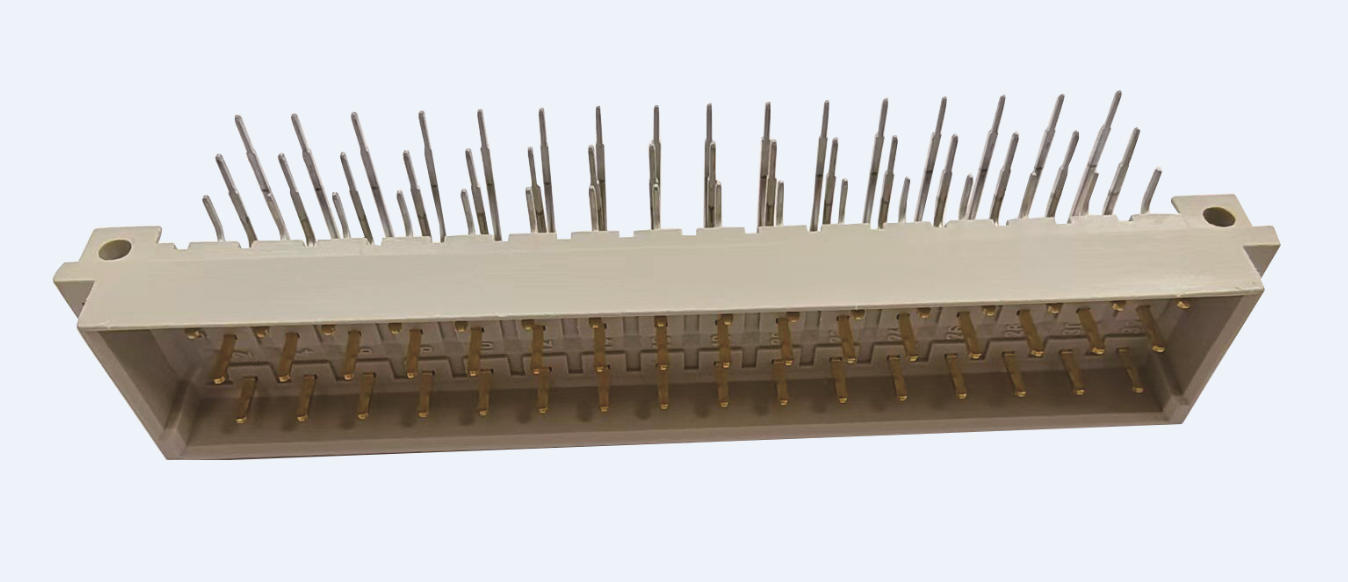

3.product picture

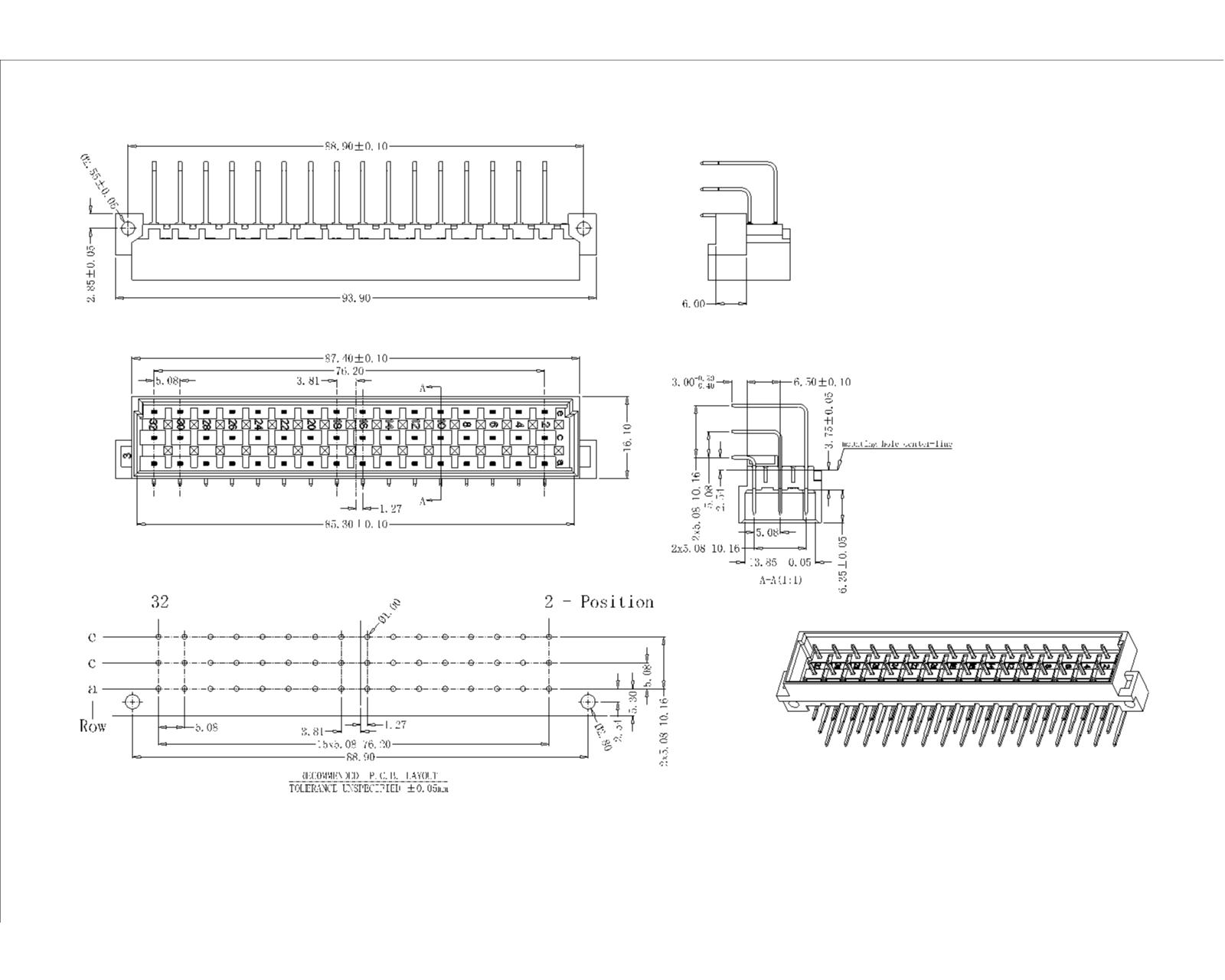

DMR-48-X-X-X-D09 DIN41612 Right Angle Male Ty

4.FAQ

Q: Are you trading company or manufacturer?

A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.
