1.8mm Pitch Dual Row Pin Header 90

This connector is widely used in electronics, electrical appliances, instruments in the PCB circuit board, its role is to be blocked in the circuit or isolated between the circuit, play a bridge function, to undertake the task of current or signal transmission.It has a reputation for universal connectors.Generally, it is paired with a bar, wire connector and so on.It is usually used with the bar bus to form a board-to-board connection;Or used with electronic Wire Harness terminals to form a board-to-wire connection;Can also be used independently for board to board connection.Because the specifications required by different products are not the same, there are also a variety of model specifications, row number: single row, double row, three row, four row, up to four rows.It has the following functions and uses:

Connect the communication between the circuit boards to reduce space occupation in electronic products, improve wiring efficiency, and facilitate maintenance.

Reliable electrical connections simplify installation and maintenance, and flexible design options reduce costs.

In sewing, it is used to fix fabric, mark the position, trim thread, remove thread, change the size of clothes, make auxiliary tools and other purposes.

2.product parameter

 1.MATERIAL

1.1 Insulator:PA6T+G/F30%,UL94V-0,Black

1.2 Contact:Brass, Matte Tin 40u"~120u" over Ni 30u"~80u"

2. ELECTRICAL :

2.1 Rating Current:1.5 AMPS/contact max.

2.2 Rating Voltage:250 V AC/DC

2.3 Contact Resistance:20 mΩ/contact max.

2.4 Insulation Resistance:1000 MΩ min.

2.5 Withstanding Voltage:450V AC/minute

3 MECHANICAL

3.1 Durability:200 Cycles min.

4. Operating Temperature: -40°C To+105°C

5.Soldering Temperature:+260°C max. (PA6T)

6.Packing:Tape&Reel+Cap

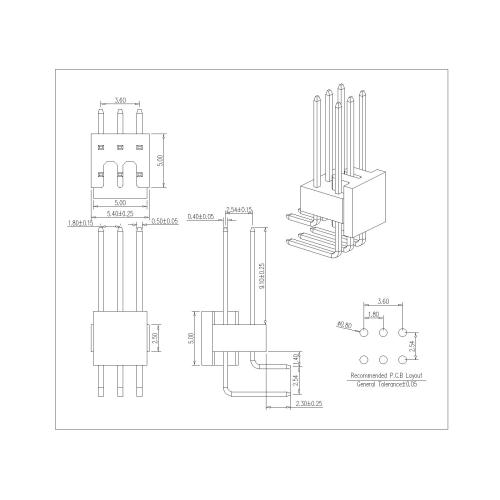

3.product picture
