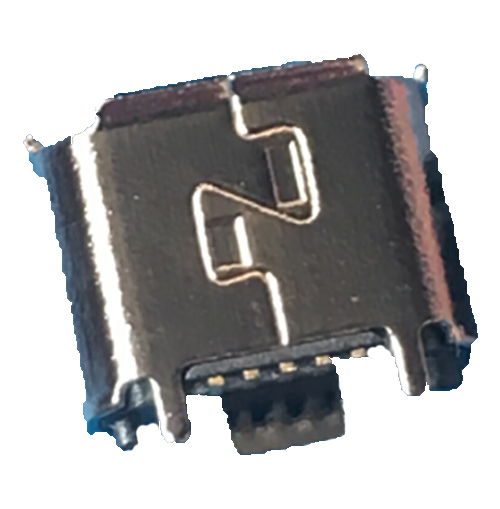

SMT Micro USB without Locating Pegs

Improving Efficiency and Durability: Introducing SMT Micro USB Connectors without Locating Pegs

$500

≥1000
Piece/Pieces

Payment Type:

T/T,Paypal

Incoterm:

FOB,CIF,EXW,FCA

1000

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Air,Express

Port:

Shenzhen

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: MUFM44-XXXXX

Brand: ANTENK

Place Of Origin: China

Interface Type: USB

Housing: Other

Pin: Brass

Poles: Other

Application: Other

Certification: Other

Gender: Male

Material: Steel

Support Card Number: Other

Operating Frequency: High Frequency

Classification: Other

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packing

Productivity: 2000K/month

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 2000K/month

Certificate: ISO9001

HS Code: 8536909000

Port: Shenzhen

Payment Type: T/T,Paypal

Incoterm: FOB,CIF,EXW,FCA

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: bag packing,Tube packing, reel packing

Introducing the SMT Micro USB without Locating Pegs! Say goodbye to those pesky pegs that always seem to disappear when you need them the most. With this revolutionary invention, you can now charge your devices without the hassle of trying to align the pegs perfectly. It's like a magic trick, but without any rabbits involved! This USB cable is so smart, it can locate itself without any assistance, making charging a breeze. Plus, it comes with a built-in sense of humor, guaranteed to bring a smile to your face every time you plug it in. Say hello to the future of charging – no pegs required!

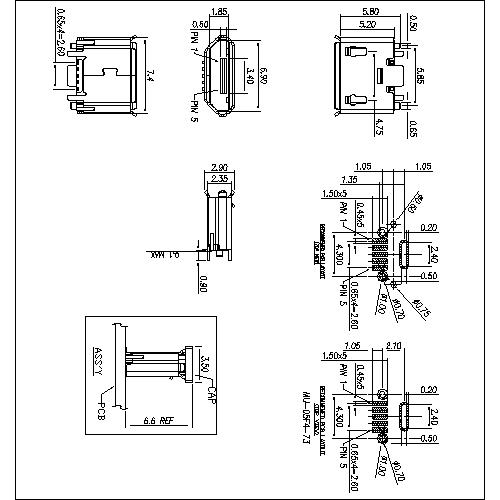

Micro USB 5P Receptacle B Type Vertical SMT With or without Locating Pegs

Specifications:
1.Electronical Characteristics:
1.1 Current Rating:1A
1.2 Dielectric Withstanding Voltage:250V DC
1.3 Contact Resistance:50MΩ Max
1.4 Insulation Resistance:100MΩ Min 250V DC
2.Material And Plating:
2.1 Housing:LCP UL94V-0
2.2 Contact:C2680R-H,50u" Nickel Underplating Over All,1u" Gold Plated On Contact Area
2.3 Shell:SUS,80u" Nickel Plated
3.Mechanical Characteristics:
3.1 PIN Strength Back:0.5kgf Min
3.2 Wetting property:Tempreture235±5°C,Time5±0.5s
3.3 Total Mating Force:3.57kgf Max
3.4 Total Unmating Force:1.00kgf Min
3.5 Durability:5000 Cycles
3.6 Temperature Resistance:250±5°C,Two Miniutes
3.7 Operating Tempreture:-30°C +80°C
