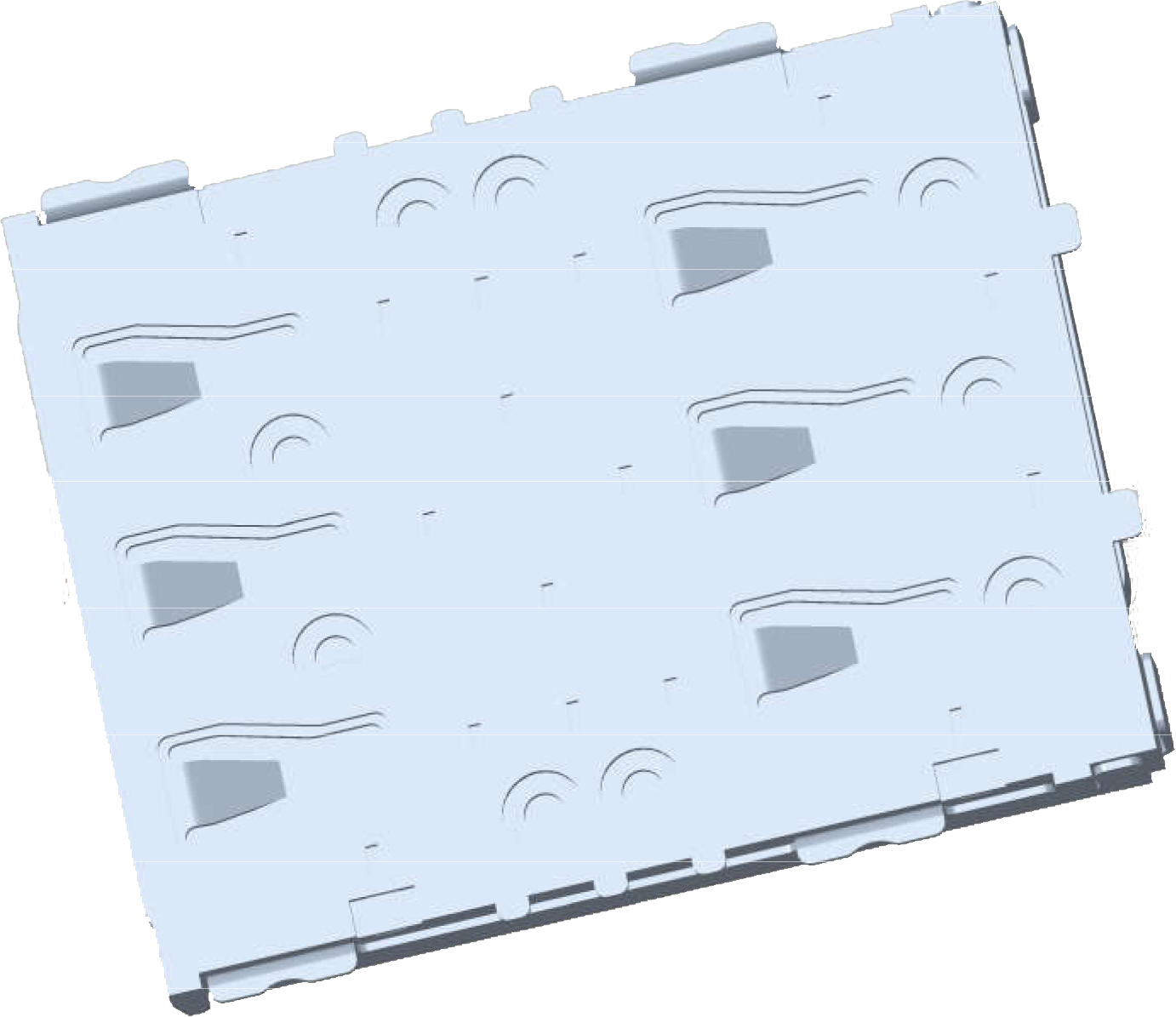

NANO SIM 1.10H NO-PUSH SMT

SIM card holder is an electronic component used to install SIM card, which is widely used in communication digital, industrial equipment, security and other fields.In the field of communication digital, SIM card holder is widely used in mobile phones, tablet computers, notebook computers and other devices for installing SIM cards to achieve mobile communication functions.In the field of industrial equipment, SIM card is used in a variety of smart devices, such as smart watches, smart speakers, etc., for the installation of SIM cards, to achieve communication and data transmission between devices, is a small smart card, designed to store user identity, security, authentication and personal information for use in mobile network terminals.In order to make power and electrical signals "uninterrupted", "unchanged" and "undiminished", contact reliability technology is particularly important.CSCONN provides SIM cards with excellent reliability and durability, covering a wide range of types and sizes. This product has the advantages of small ultra-thin structure, hot swappable support, stable performance, etc., suitable for smart devices such as tablet computers and mobile MifIs

2.product parameter

1. Material:

   1-1 Housing:High Temperature Thermoplastic,

         Color Black UL 94V-0

   1-2 Contact: Phosphor Bronze(T=0.08±0.01mm)

   1-3 Cover: Stainless Steel  T=0.10±0.03mm

2.Plating:

   2-1 Contoct terminal:

         Contet area: Gold 1u" Min.

         Solder area: Gold 0.8u" Min .

         Underplating: Ni overall 50U" Min.

   2-2 Cover:

         Underplating: Ni overall 50U" Min.

         Solder area: Gold 0.8u" Min .

3. Specification:

   3-1.Current Rating :0.5mA AC/DC max.

   3-2.Voltage Rating :125V AC/DC

   3-3.Ambient Temperature Range :-20°C~+60°C

   3-4.Storage Temperature Range :-40°C~+70°C

   3-5.Ambient Humidity Range :95% R.H. Max.

   3-6.Contact Resistance:100m  max.

   3-7.Insulation Resistance:1000M  min./500VDC
