B-C CRIMP CONTACT AWG 28-20

1.product introduction

The main features are as follows:

1. High protection level: European socket connectors usually use high protection level design, such as IP44, IP54, IP67, etc., to ensure that the electrical equipment inside the socket is protected from dust, water mist and other external environment, thereby improving the reliability and stability of electrical equipment.

2. High safety: European socket connector has good safety performance, reliable mechanical connection between the plug and the socket, after the plug is inserted into the socket, it is necessary to turn the plug to complete the electrical connection, avoiding the plug is not strong and misinserted.In addition, the European socket connector also has anti-arc, anti-electric shock and other safety functions.

3. Wide range of applications: European socket connectors have a variety of different types and specifications, can be applied to a variety of different electrical equipment and machines, such as power tools, electric vehicles, ships, lighting equipment, audio equipment, medical equipment and so on.

2.product parameter

 技术参数technical specification:

1、适用线径Wire range:   AWG28 ... AWG20

2、导体截面积conductor sectional area: 0.09 ... 0.5mm2^

3、线芯外径Outer core wire diameter: 0.7 ... 1.5mm

4、接触电阻contact resistance：<20 mΩ

5、剥线长度strip length：3.5 ... 4mm

6、常规的镀半金锡Gold Flash（非常规依客户要求）

    Regular semi-gold tin-plated Gold Flash

    (unconventional upon customer request)

包装packing：5000PCS/盘reel

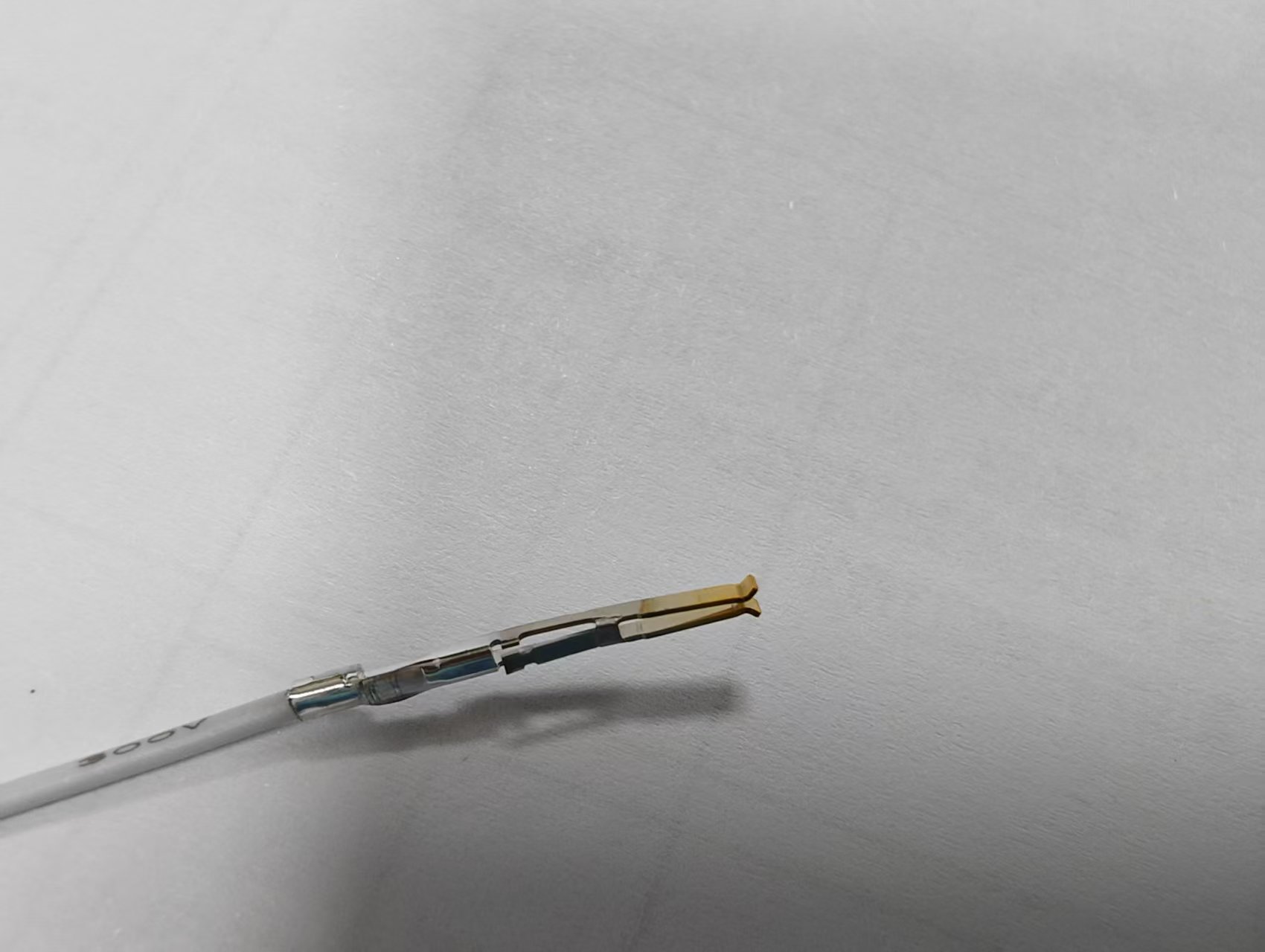

3.product picture
