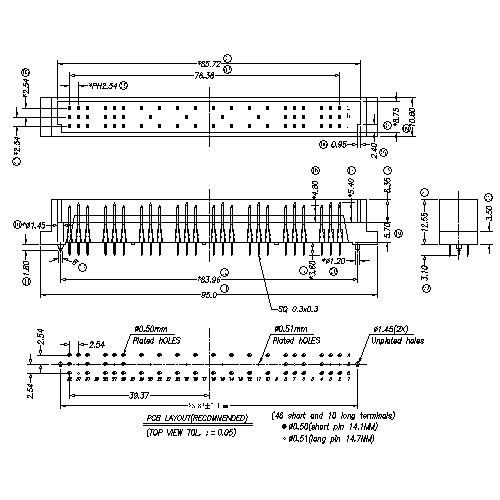

DIN41612 Vertical Plug Type C 56 Positions

Introducing the DIN41612 Vertical Plug Type C 56 Positions, a cutting-edge solution designed exclusively for professionals seeking superior connectivity and efficiency. This innovative plug type ensures seamless and reliable connections in demanding industrial environments. With its 56 positions, it offers an extensive range of options for complex circuitry configurations, enabling professionals to optimize their systems with utmost precision. Crafted with the highest quality materials, this plug type guarantees exceptional durability and longevity, even in harsh conditions. Its vertical design allows for space-saving installation, making it an ideal choice for compact setups. Upgrade your professional connectivity with the DIN41612 Vertical Plug Type C 56 Positions and experience unparalleled performance.

Shenzhen Antenk Electronics Co., Ltd. introduced a DIN41612 Vertical Plug Type C 56 Positions connector(46 short + 10 long)

European socket is one of the connectors. According to the production and processing technology, there are many types of connectors. For example, the pin headers form a board-to-board connection system, the rubber pins form a wire-to-wire connection system, and the European sockets can form a wire. For the connection between the plates, the main signal is the electrical signal.

        SPECIFICATION
Current Rating:                       2.0Amp
Insulation Resistance:                1000MΩ min.at DC 100V
Contact Resistance:                   20mΩ max
Withstand Voltage:                    AC 1000V For 1 Minute
Operating Temperature:               -55°C  to  +105°C
Contact Material:                    Brass
Contact Plating:                      Au or Sn Over Ni
Insulator Material:                   PBT+30%GF UL 94V-0
Insertion Force:                    56 pin max.53N
Withdrawal Force:           0.15N min.per individual contact
