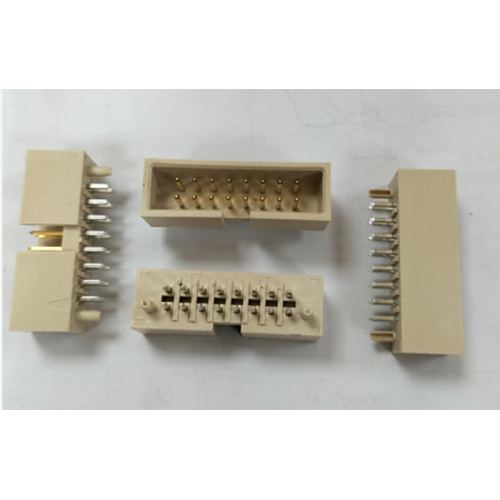

2.54mm Box Header Molex Type 180 Degree H8.89

The 2.54mm Box Header Molex Type 180 Degree H8.89 is a high-quality electronic connector designed for professional use. With its precise 2.54mm pitch, this box header ensures secure and reliable connections in various electronic applications. The 180-degree configuration allows for easy installation and flexibility in tight spaces. Made with durable materials, this Molex type connector guarantees long-lasting performance. It is ideal for PCBs, breadboards, and other electronic projects that require a dependable connection. Whether you are a professional or an enthusiast, the 2.54mm Box Header Molex Type 180 Degree H8.89 is an essential component for your electronic needs.

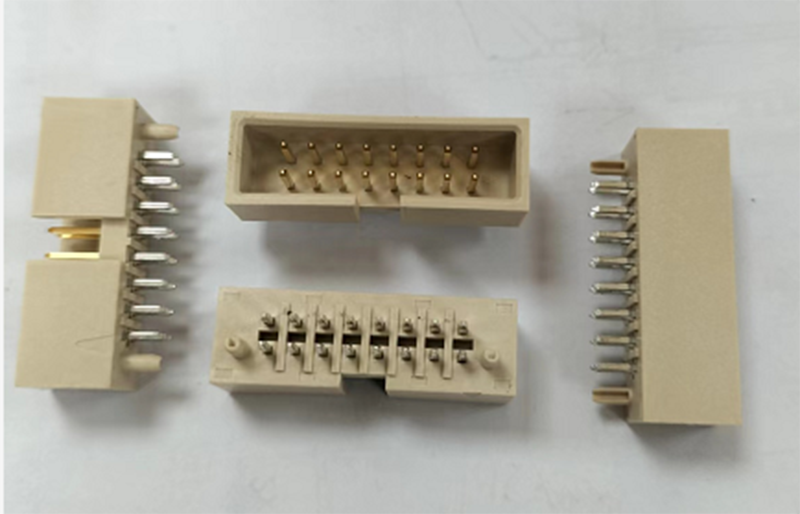

Shenzhen Antenk Electronics Co., Ltd. launched a 2.54mm Box Header 180° H=9.00mm Electronics ,The simple cow is usually composed of a square plastic socket and a number of square needles arranged neatly. The difference between the simple cow connector and the horn connector is that the simple horn removes the buckles on both sides.

According to the requirements, the outer dimensions of the simple cattle connector are commonly used in 1.27 pitch, 2.0 pitch, and 2.54 pitch; according to the spacing, the diameter of the square pin used is also changed accordingly. The bottom and PCB contact surface can be designed as SMT patch or DIP in-line 180 degrees.

   SPECIFICATION
Current Rating:                       3.0Amp
Insulation Resistance:            1000MΩ  min
Contact Resistance:                10MΩ  max
 Withstand Voltage:               500V AC/DC
Operating Temperature:        -55°C  to  +125°C
MATERIAL
Housing: PBT.Glass filled UL94V-0
Contact Material:     Brass
Contact Plating:
T=Tin plated on all area,ni under plated all over.
G=Gold plated on all area,ni under plated all over.
L=0.4u"(Gold)
N=3u"(Gold)
