2.00mm Box Header 180° H=4.8mm Connector
  • 2.00mm Box Header 180° H=4.8mm Connector

2.00mm Box Header 180° H=4.8mm Connector

"Tiny but Mighty: The Connector That'll Make Your Boss Say 'Wow, It's So Small!'"

  • $500
    ≥1000
    Piece/Pieces
Payment Type:
T/T,Paypal
Incoterm:
FOB,CIF,EXW,FCA
1000
Min. Order:
1000 Piece/Pieces
Transportation:
Ocean,Air,Express
Port:
SHENZHEN,
Share:
Chat Now
  • Product Description
< >
Overview
Product Attributes

Model No.: BHCS04-XXXXX

Brand: ANTENK

Place Of Origin: China

Interface Type: Ac/Dc

Housing: Plastic

Pin: Brass

Poles: Other

Application: Other

Certification: Other

Gender: Male

Material: Brass

Support Card Number: Other

Operating Frequency: High Frequency

Classification: Other

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packing

Productivity: 2000K/month

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 2000K/month

Certificate: ISO9001

HS Code: 8536909000

Port: SHENZHEN,

Payment Type: T/T,Paypal

Incoterm: FOB,CIF,EXW,FCA

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
bag packing,Tube packing, reel packing

Introducing the "Tiny Titan" - our 2.00mm Box Header 180° H=4.8mm Connector! This little marvel is here to revolutionize your world of connectors. Don't be fooled by its petite size, because it packs a punch! With its 180° bend, it's like the connector version of a yoga master, effortlessly bending and flexing to fit your needs. Need a reliable connection? Look no further! This connector is as dependable as your morning coffee. It may be small, but it's mighty! So, say goodbye to bulky connectors and hello to the "Tiny Titan" - the connector that's small in size but big on performance!

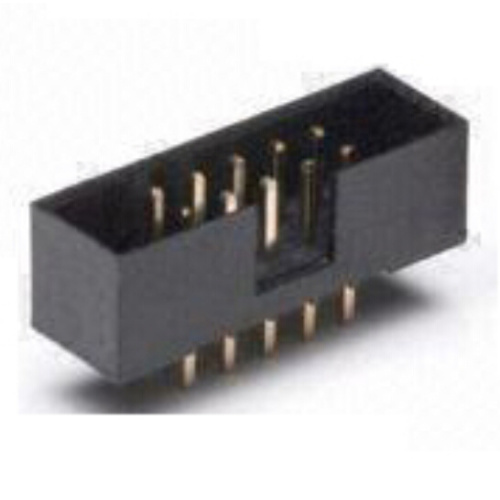

2.00mm Box Header 180° H=4.8mm connector

Specifications:
Current Rating: 2.0 Amp
Insulation Resistance:1000MΩ  min
Contact Resistance: 20MΩ  max
 Withstand Voltage: 500V AC/DC
Operating Temperature: -40°C  to  +105°C
Contact Material: Brass
Contact Plating: Au or Sn Over Ni
Insulator Material:  PA6T+30%GF UL  94V-0

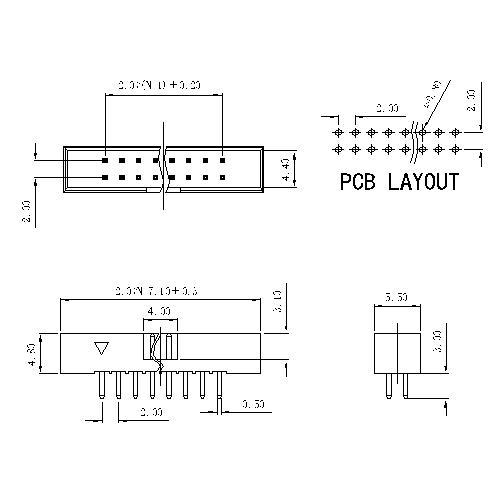

2.00mm Box Header 180° H=4.8
