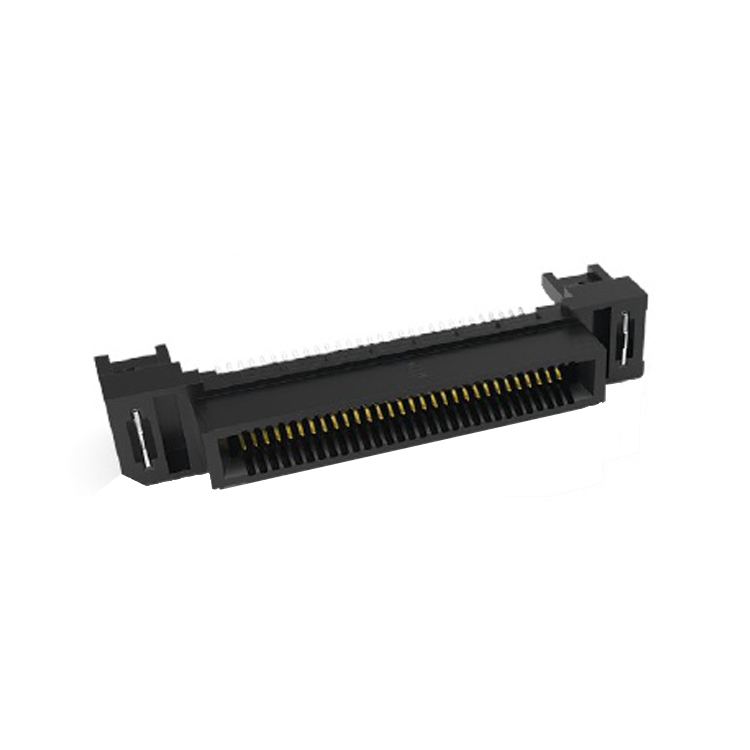

Vertical SMD Edge Card PCI Socket

Introducing our cutting-edge Vertical SMD Edge Card PCI Socket, the perfect solution for seamless and reliable connectivity. Designed with precision and innovation, this socket offers exceptional performance and durability. Its vertical orientation allows for space-saving installation, making it ideal for compact devices. The SMD technology ensures effortless soldering and secure connections, while the edge card design ensures maximum signal integrity. With its high-speed data transfer capabilities and robust construction, this PCI socket guarantees optimal performance in demanding applications. Upgrade your system with our Vertical SMD Edge Card PCI Socket and experience unparalleled connectivity like never before.

0.8mm Vertical SMD Edge Card Socket

Specifications:

1.Current Rating:1.0A.
2.Voltage rating 30V AC/DC.
3.Withstanding voltage; 500V AC/minute.
4.Characteristics:

5.Insulation Resistance: Min. 1000M ohms (initial)

6.Saltwater spray resistance(header and socket
mated: 24 hours,insulact resistance max.90m Ω

7.Contact Resistance: Max. 900mΩ

8.Ambient temperature:-55℃ ~ +85℃

9. Storage temperature:-55℃~+88℃(product only);
-40℃~+50℃(emboss packing).

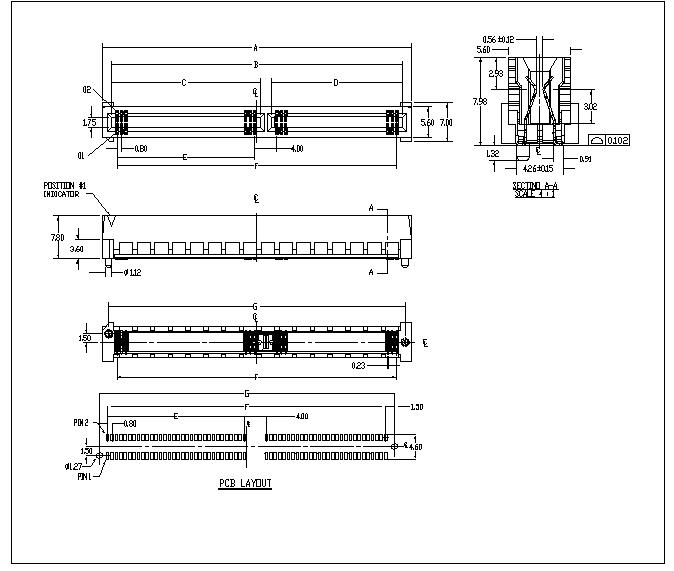

2D Drawing:
