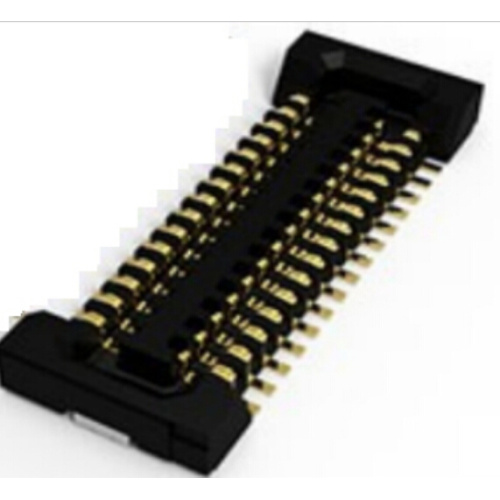

0.4mm male Board to Board plug

Introducing our 0.4mm male Board to Board plug, a versatile and reliable solution for seamless connectivity. Designed with precision, this plug ensures a secure and stable connection between two circuit boards. With a compact size of 0.4mm, it offers a space-saving solution without compromising on performance. The plug is crafted using high-quality materials, guaranteeing durability and longevity. Its user-friendly design allows for easy installation and removal, making it ideal for various applications. Trust our 0.4mm male Board to Board plug to provide efficient and dependable connections, meeting your electronic needs with utmost precision.

0.4mm Board to Board male connector mating Height=1.00mm

Specifications:
1.Materlal:
  1-1.Molded portion:LCP resin(ul94-0).
  1-2.Contact and post:copper alloy.
2.Surface treatment:
  2-1.Terminal portion;base;Ni plating surface;
   Au plating(except the terminal tips);exposed nickel portions.
  2-2.Metal Clips:base;Ni plating surface;Au flash plating
                  (except the terminal tips)or base;Ni plating surface;
                  Sn flash plating (except the terminal tips)
3.Characteristics:
  3-1.Rated voltage:60V AC/DC
  3-2.Rated curren:0.3A/contact(Max.5A at total contact)
  3.3.Insulation resistance:Min.1000MΩ(initial)
  3.4.Breakdown voltage:150V AC fou 1 min.
  3-5.Saltwater spray resistance(header and socket mated:24 hours,
     insulact resistance max.90mΩ.
  3-6Contact resistance:Max.90mΩ.
  3-7.Ambient temperature:-55℃~+85℃.
  3-8.Storage temperature:-55℃~+88℃(product only);
                          -40℃~+50℃(emboss packing).
  3-9.Composite insertion force:Max.0.918N/contacts X contacts(initial).
  3-10.Composite removal force:Min.0.165N/contacts X contacts.
  3-11.Post holding force:Min.0.49N/contacts.
  3-12.Insertion and removal life:50times.
