Modular 8P8C Top Entry Shield With Led

"Enhance Connectivity and Visibility with the Innovative Modular 8P8C Top Entry Shield With LED"

$500

≥1000
Piece/Pieces

Payment Type:

L/C,T/T,Paypal

Incoterm:

FOB,CFR,CIF,EXW

1000

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Air,Express

Port:

Shenzhen

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: ATRJ5228-8P8C-GO-E-A-A-004

Brand: Antenk

Place Of Origin: China

Interface Type: Other

Housing: Plastic

Pin: Brass

Poles: Other

Application: Other

Certification: Ce

Gender: Female

Material: Copper

Support Card Number: Other

Operating Frequency: High Frequency

Classification: Wired Broadband Connection

Inner Packing: Tray

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packing

Productivity: 2000K/month

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 2000K/month

Certificate: ISO 9001-2015

HS Code: 8536909000

Port: Shenzhen

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: bag packing,Tube packing, reel packing

Introducing the Modular 8P8C Top Entry Shield With LED, the ultimate solution for professionals seeking a reliable and efficient networking tool. This top entry shield is designed to provide maximum protection and superior connectivity for your networking needs. With its modular design, it allows for easy customization and flexibility to meet your specific requirements. The built-in LED indicator ensures quick and accurate identification of network status, saving you valuable time and effort. Crafted with precision and durability in mind, this shield guarantees long-lasting performance in even the most demanding professional environments. Upgrade your networking setup with the Modular 8P8C Top Entry Shield With LED and experience unmatched efficiency and reliability.

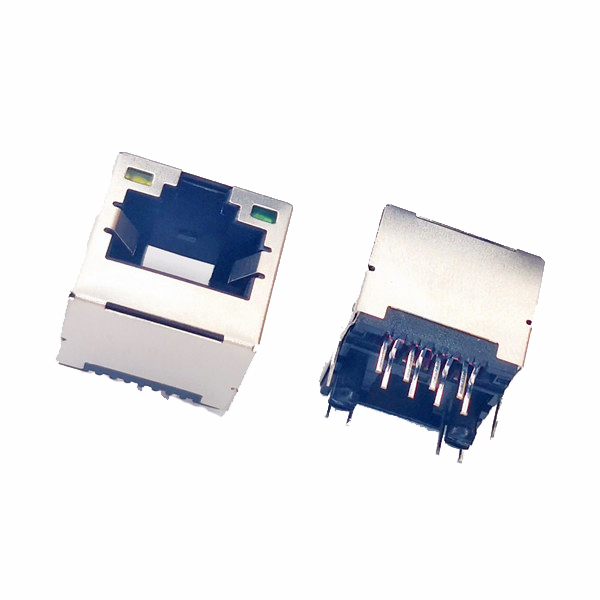

Modular Jack 8P8C Top Entry Shield With Led Jack

Specifications:
1.Electronical Characteristics:
1.1 Voltage Rating:125 VAC RMS
1.2 Current Rating:1.5A
1.3 Contact Resistance:30 Milliohms Maximum
1.4 Insulation Resistance:1000 Megohms Min @ 500VDC
1.5 Dielectric Strength:1000 VAC RMS 60HZ.1MIN.
2.Material & Plating
1.Housing Material:PBT+30% G.F UL94V-0 BLACK
2.Contact Material:PHOSPHOR BRONZE,T=0.35MM
3.Shield Material:BRASS C2680 T=0.25MM
4 Plating:GOLD PLATING OVER NICKEL
5.PCB Retention Pre-solder:1 LBS Minimum
6.PCB Retention Post-solder:10 LBS Minimum
7.OPERATION LIFE:750 CYCLES MIN.
8.LED'S CHARACTERISYICS:
8-1.POWER DISSIPATION:80MW MAX
8-2.FORWARD CURRENT:30mA MAX
8-3.FORWARD Voltage:2.2V TYPICAL
8-4.REVERSE Voltage:5.0V MAX
8-5.REAR EMISSION WAVELENGTH:GREEN LED 568nm TYPICAL YELLOW LED 589 nm TYPICAL
8-6.ANODE CATHODE
3.Environmental:
4.1 Storage:-40°To +85°
4.2 Operation:0°To +70°
4.3 Wave Soldering Temperature:230°To 250°(3-5 Seconds)
