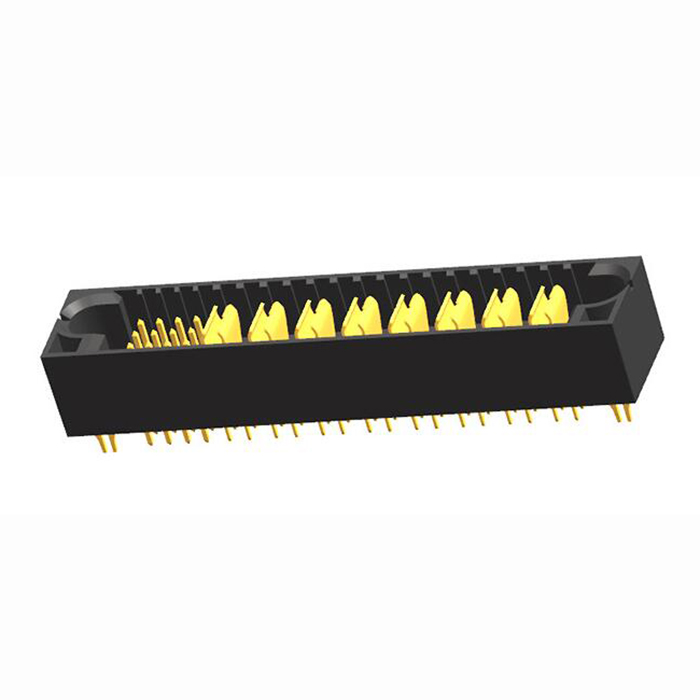

5.08MM 8P Power+20P Signal Male Power Connector

Introducing the 5.08MM 8P Power+20P Signal Male Power Connector, a high-quality and reliable solution for all your power and signal connection needs. Designed with precision and durability in mind, this connector offers a secure and stable connection for seamless power transmission and signal transfer. With its 5.08MM pitch, this connector ensures easy installation and compatibility with a wide range of devices and applications. The 8P power pins provide efficient power delivery, while the 20P signal pins guarantee uninterrupted data transmission. Whether you're working on industrial machinery, electronic equipment, or any other power-dependent system, this connector is built to handle the most demanding environments. Crafted with premium materials, this connector offers excellent conductivity and resistance to corrosion, ensuring long-lasting performance. Its ergonomic design allows for effortless insertion and removal, saving you time and effort during installation or maintenance. Invest in the 5.08MM 8P Power+20P Signal Male Power Connector for a reliable and efficient power and signal connection solution that won't let you down. Experience superior performance and peace of mind knowing that your connections are secure and your systems are running smoothly.

Shenzhen Antenk Electronics Co., Ltd. introduced a 5.08MM 8P Power+20P Signal Male
Straight Dip Power Connector    PSPM5.08S-0820G0G0AEX

Note:
1.Material:
 A.Terminal:Phosphor Copper C5191
 B.Housing:PA9T+30% G/F UL94V-0 Color: Black
2.Plating:
 Signal Contact: 30u-50u Nickel Plated, 1U Gold Plated
 Power Contact: 30u-50u Nickel Plated, 1U Gold Plated3.
3.Electrical Performance Requirements:
 Rated Voltage: Signal Contact: 60V; Power Contact: 250V
 Rated Current: Single Power Contact Max 40A; All Power Contacts
 Max 1.5A; Single Signal Contact Max 3A; All Signal Contacts Max 1.5A
 Withstand  Voltage:Leakage Current: Contact Voltage: 1000 VDC Less
 Than 1 mA / Min, Between Power Contacts and Between Power and Signal
 Contacts:2500Vdc / Min, Leakage Current Less Than 1mA
 Insulation resistance: Between Signal Contacts: 500MΩ;
                        Between Power Contacts: 500M Ω
                        And Signal Contact: 10000M Ω
 Working Temperature: -40~+125℃(Including The Temperature Rise of 40 ℃);
