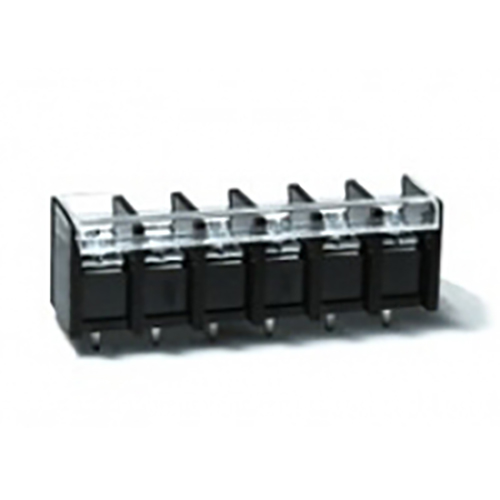

Barrier Terminal Block Connector Pitch 8.25mm

Terminal station is an electronic component used for circuit connection, also known as Terminal Block, electrical connector, etc.According to the shape, the circular electric connector is the most used in military equipment (aviation and aerospace) due to its own structural characteristics.Rectangular electrical connectors are more commonly used for printed circuit boards of electronic devices because of their simple structure.According to the structure: threaded connection, bayonet (fast) connection, card lock connection, push-pull connection, straight insert connection, etc.According to the contact end connection form: crimping, welding, winding;Screw (cap) fixed;According to environmental protection: environmental resistance electrical connector and ordinary electrical connector.The electrical connector consists of a fixed-end electrical connector (hereinafter referred to as a socket) and a free-end electrical connector (hereinafter referred to as a plug).The socket is fixed on the electrical parts through its square (round) disk (individual welding method), the plug is generally connected to the cable, and the plug and socket are connected by connecting the nut.

2.product parameter

Standard(参考标准):         UL     IEC

Voltage Rating (额定电压):  300V   450V

Current Rating(额定电流）： 15A    17.5A

Wire range(使用线径）： 22－14AWG  1.5mm²

Withstanding voltage(耐电压):  AC2000V/1Min

Insulation resistance(绝缘电阻):  500MΩ/DC500V

Temp Rang(温度范围):  -40°C ~ +105°C

Max Torque(最大锁紧力矩): 0.5Nm(4.5lb.in)

Housing(塑件)：  PA66, UL94V-0

Screw(螺丝）：   Steel, M3.0 Ni-Plated

Terminal(端子）： Brass.0.8t,Tin Plated

Pitch(间距):     8.25mm

Poles(极数):    2P-26P
