1.27mm Female Header Dual Side Insert SMT

Introducing the "Pin-Perfect Partner" - our 1.27mm Female Header Dual Side Insert SMT! Designed to bring joy to even the most serious professionals, this little gem is here to revolutionize your electronic connections. With its dual-sided feature, it's like having a two-faced friend who always has your back, or should we say, your pins! Say goodbye to those frustrating moments of trying to figure out the right orientation - this header will always find its way, no matter how twisted things get. So, let the "Pin-Perfect Partner" bring a smile to your face and a seamless connection to your work. It's time to embrace the fun side of electronics!

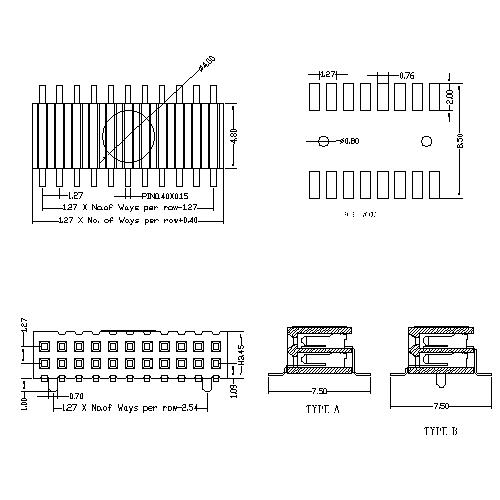

Shenzhen Antenk Electronics Co., Ltd. has promoted a 1.27mm pitch Female Header Dual Side Insert SMT (W=4.8 H=3.45) connector.
classification
1. The mother is divided according to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54 spacing.
2, the mother is divided according to the height of the plastic and whether there are bumps, the bumps are semi-convex and full convex.
3, according to the number of rows of pin headers: single row, double row, 3 rows, 4 rows, etc., the current maximum is only 4 rows.
4, according to the installation method: 180 degrees with S, 90 degrees with W, SMT with T.
5. According to whether it needs to be increased, whether it needs to be divided by positioning column, there are two kinds of positioning columns, one is the inner positioning column and the other is the ear positioning column.
Female terminal type: U terminal and Y terminal.
U-shaped terminal, contact with three sides of the U-shaped terminal for general plastic height.

Y-type terminal, contact with 2 faces, generally high and high Y-type terminal.

We hope to achieve a mutually beneficial relationship with you and look forward to your common development. We are willing to work together to create brilliant!

product information:

1.No.of Contacts: 02 To 100.

2.Connector Type: Double row.

3.Plastic High:H=3.45mm.(Other sizes can be selected).

4.Insulator Material : PA6T / LCP / PA9T.

5.Packing:Tray / Bag / Tube / Tube+CAP / Tape&Reel / Tape&Reel+CAP.

   SPECIFICATION
Current Rating:                       1Amp
Insulation Resistance:            1000M ohms min
Contact Resistance:               20M ohms max
Dielectric Withstanding:          AC500V
Operating Temperature:          -65°C  to  +125°C
Contact Material:                    Brass
Insulator Material:                   PA6T UL 94V-0 Black
