1.27 X 2.54mm Female Header Dual Row Connector

Introducing our latest innovation, the 1.27 X 2.54mm Female Header Dual Row Connector! This cutting-edge connector is designed to revolutionize your electronic projects. With its dual row design, it provides double the connectivity options, allowing you to effortlessly connect multiple components. The precise 1.27 X 2.54mm dimensions ensure a secure and reliable connection, ensuring seamless data transfer and electrical conductivity. Crafted with utmost precision and durability, this connector is built to withstand even the harshest conditions. Upgrade your projects with our 1.27 X 2.54mm Female Header Dual Row Connector and experience the ultimate performance and versatility in connectivity.

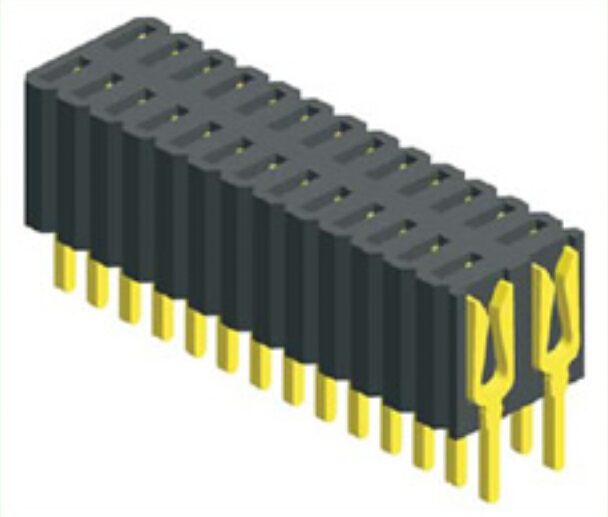

1.27 X 2.54mm Female Header Dual Row Straight Type connector.
Classification of female connectors:
1. The mother is divided according to the spacing: 0.8MMM, 1.0MM, 1.27MM, 2.0MM, 2.54MM spacing.
2. The mother is divided according to the height of the plastic and whether there are bumps. The bumps are semi-convex and fully convex.
3. The mother is divided according to the number of rows: there are single row of mothers, two rows of mothers, three rows of mothers, four rows of mothers.
4. The mother is divided according to the installation method: 180 degree mother (straight row mother), 90 degree mother (bending foot mother), patch mother (SMT mother).
5. The mother is divided according to whether it needs to be increased or not, whether it is a positioning column, one is the inner column, and the other is the positioning pin.
6. Socket mounting terminal type: U-shaped terminal and Y-shaped terminal.
7. Female terminal package: disk, package, bulk.
8. Female terminal material: brass, phosphor bronze.
9. The mother is made of plastic materials: PBT, PA46, PA6T, PA9T, etc.
10. The surface of the female terminal is plated: gold plated, tin plated, nickel plated, imitation gold.

1.No.of Contacts: 02To 100.

2.Connector Type: Dual Row.

3.Plastic High:4.60mm.(Other sizes can be selected).

4.Insulator Material : PA6T / LCP / PA9T.

5.Packing:Tray / Bag / Tube / Tube+CAP / Tape&Reel / Tape&Reel+CAP.

 SPECIFICATION
Current Rating:                       1Amp
Insulation Resistance:            1000M ohms min
Contact Resistance:               20M ohms max
Dielectric Withstanding:          AC500V
Operating Temperature:          -65°C  to +125°C
Contact Material:                    Brass
Insulator Material:                   PA6T UL 94V-0 Black
