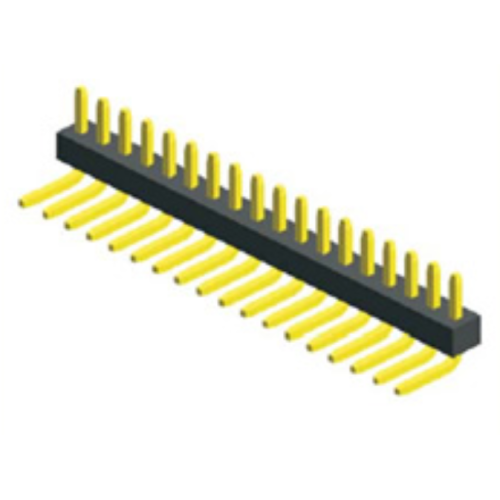

1.00 mm Pin Header Single Row Angle Type

Introducing the "Bendy Bobby" 1.00 mm Pin Header Single Row Angle Type! This little fella is not your average pin header, oh no! With his quirky personality and unique design, he's here to make your electronic connections a breeze. Need to connect those wires at a weird angle? No problemo! Bendy Bobby will twist and turn to accommodate any tricky situation, making your life easier and your projects more fun. Plus, his vibrant colors will add a pop of personality to your circuit board. Say goodbye to dull connections and hello to the wacky world of Bendy Bobby!

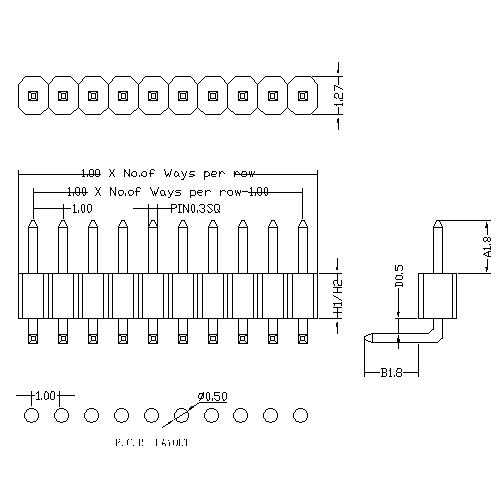

Shenzhen Antenk mainly produces connector products, and a 1.00 pitch single-row right Angle connector will be introduced below. Its PIN PIN is 0.30*0.30mm, which conforms to UL certification. Plastic plated: PA6T, PA9T, LCP, PIN available with tin plated, gold plated 1u,3u,5u,10u,15u and 30u.It is manufactured in a dust-free environment, and we provide after sales service support as well, and quality warranty period last half year

Specifications:
Current Rating: 0.75Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Operating Temperature: -65°C  to  +125°C
Contact Material: Brass
Insulator Material: PA6T,UL94V-0,Color:Black
