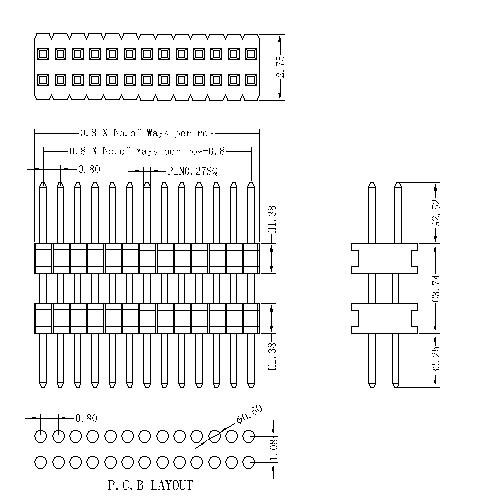

0.8mm Ptich Dual Row Double Plastic Straight

Introducing our latest innovation, the 0.8mm Pitch Dual Row Double Plastic Straight connector. Designed for professionals seeking unparalleled precision and reliability in their projects, this connector offers exceptional performance. With a pitch of 0.8mm, it ensures a seamless connection between components, enabling seamless data transfer and optimal signal integrity. The dual-row design provides double the contact points, enhancing overall connectivity and reducing the risk of signal loss. Crafted with high-quality plastic materials, this connector guarantees durability and longevity. Whether you're working on electronics, telecommunications, or any other industry, our 0.8mm Pitch Dual Row Double Plastic Straight connector is the perfect choice for your professional needs.

Pitch: 0.8mm; Max  Pole: 2*2P to 2*50P, Straight dual-row, double plastic; Manufacture pin connector for 10 years;With CE, RoHS marks; insulator:  PA6T, PA9T, LCP ...available with tin plated, gold plated 1u,3u,5u,10u,15u and 30u.

   SPECIFICATIONS:
Current Rating:             0.75Amp
Insulation Resistance:      1000M ohms min
Contact Resistance:         20M ohms max
Dielectric Withstanding:    AC500V
Operating Temperature:      -65°Cto+125°C
Contact Material:           Brass
Insulator Material:         PA6T,UL 94V-0 Black
